Annotation

1. Genomic Element Distribution Analysis

This workflow provides two complementary ways to perform genomic distribution analysis across multiple annotation layers. Users may either run a single wrapper function to execute all selected analyses in one step, or call each annotation function individually for inspection of intermediate results.

• Integrated workflow (recommended):
  The genomic_distribution() wrapper function executes one or more distribution analyses within a single, unified pipeline. According to the specified distributions argument, it internally invokes the four distribution functions in sequence, while automatically handling shared parameters and organizing all outputs in a common directory.

• Step-by-step workflow:
  The individual functions genic_distribution(), ccre_distribution(), chromhmm_distribution(), and repeat_distribution() can be run independently. This approach allows users to customize parameters for each analysis and to inspect intermediate results with greater flexibility.

Wrapper Function Overview

The genomic_distribution() function performs genomic distribution analyses across multiple annotation types.

Parameters

Parameter	Type	Default	Description	Example
query	GRanges or GRangesList	—	Genomic regions to be annotated. When a GRangesList is provided, each element is treated as an independent sample or cluster.	query = my_peaks
out_dir	character	—	Output directory used to store all result tables and plots. The directory is created automatically if it does not exist.	out_dir = “./distribution_results”
distributions	character	c(“genic”, “ccre”)	Annotation layers to run. Supported options include “genic”, “ccre”, “chromhmm”, and “repeat”. Multiple annotation layers can be selected simultaneously.	distributions = c(“genic”, “repeat”)
ref_genome	character	“hg38”	Reference genome version used for annotation. Supported options are “hg38” and “mm10”.	ref_genome = “mm10”
ref_source	character	“knownGene”	Gene annotation source used for genic annotation. “knownGene” uses UCSC knownGene annotations via TxDb packages, while “GENCODE” uses reference annotations from GENCODE (Release 49 for hg38 and vM35 for mm10).	ref_source = “GENCODE”
mode	character	“nearest”	Assignment mode for overlapping features. “nearest” assigns each query region to the closest feature, while “weighted” assigns features proportionally based on overlap length.	mode = “weighted”
plot	logical	TRUE	Whether to generate stacked bar plots in addition to summary tables.	plot = FALSE

Example Usage

library(multiEpiCore)

genomic_distribution(
  query = my_grl,
  out_dir = "./genomic_distribution_results",
  distributions = c("genic", "ccre", "chromhmm", "repeat"),
  ref_genome = "hg38",
  ref_source = "knownGene",
  mode = "nearest",
  plot = TRUE
)

1A. Genic Distribution Analysis

The genic_distribution() function annotates genomic regions with gene structural features, calculates overlap-based feature proportions, and generates a summary table with an optional visualization. The genic categories are defined as follows:

• Promoter: Regions defined as the 1,000 bp upstream of transcription start sites (TSS), representing promoter-proximal regulatory sequences associated with transcription initiation.
• 5’ UTR: Untranslated regions at the 5’ end of transcripts.

• Exon: Exonic regions corresponding to coding sequences only. Since untranslated regions are excluded, this category represents protein-coding portions of transcripts.
• Intron: Non-coding regions spliced out during transcript processing, often enriched for regulatory elements.

• 3’ UTR: Untranslated regions at the 3’ end of transcripts.

Parameters

Parameter	Type	Default	Description	Example
query	GRangesList or GRanges	—	Query regions to be annotated with gene structure features.	query = my_peaks
out_dir	character	“./”	Output directory used to store annotation results. The directory is created automatically if it does not exist.	out_dir = “./genic_results”
ref_genome	character	“hg38”	Reference genome version. Supported options are “hg38” and “mm10”.	ref_genome = “mm10”
ref_source	character	“knownGene”	Gene annotation source used to define gene models. “knownGene” uses UCSC manually curated gene models via TxDb packages, while “GENCODE” uses comprehensive reference annotations from GENCODE (Release 49 for hg38 and vM35 for mm10).	ref_source = “GENCODE”
mode	character	“nearest”	Annotation assignment mode. “nearest” assigns each region to the closest gene feature, while “weighted” assigns features proportionally based on overlap length.	mode = “weighted”
plot	logical	TRUE	Whether to generate a stacked barplot showing the distribution of genic features.	plot = FALSE

Output Files

The function generates the following output files in the specified out_dir:

1. cCRE annotation table - genic_distribution.tsv
   • Tab-delimited table of genic category percentages
   • Rows: samples/clusters from input
   • Columns: genic categories
   • Values: percentage of each category class per sample/cluster
2. cCRE distribution plot - genic_distribution.pdf (if plot = TRUE)
   • Stacked bar plot showing genic composition across samples or clusters
   • X-axis: percentage (0-100%)
   • Y-axis: samples/clusters

1B. cCRE Distribution Analysis

The ccre_distribution() function annotates genomic regions with candidate cis-regulatory elements (cCREs) using RepeatMasker data, calculates overlap-based repeat class proportions, and outputs a summary table with an optional visualization. The cCRE categories are defined as follows:

• Promoter (Promoter-like signature):
  cCREs located within 200 bp of an annotated or experimentally supported TSS. They show high chromatin accessibility together with strong H3K4me3 enrichment, consistent with active transcription initiation sites.

• Enhancer (Enhancer-like signature):
  cCREs with high chromatin accessibility and strong H3K27ac signals. Elements within 2 kb of a TSS are classified as TSS-proximal enhancers, while those farther away are classified as TSS-distal enhancers. Regions within 200 bp of a TSS must have low H3K4me3 to avoid promoter assignment.

• CA-H3K4me3 (Chromatin accessibility with H3K4me3):
  cCREs showing high chromatin accessibility and H3K4me3 enrichment, low H3K27ac, and located outside the 200 bp TSS window. These regions resemble promoter-like chromatin states but are not directly associated with annotated TSSs.

• CA-CTCF (Chromatin accessibility with CTCF):
  cCREs characterized by high chromatin accessibility and CTCF binding, with low H3K4me3 and H3K27ac signals. They are typically associated with chromatin insulation and higher-order genome organization.

• CA-TF (Chromatin accessibility with transcription factor binding):
  cCREs with high chromatin accessibility that overlap transcription factor binding clusters, while showing low H3K4me3, H3K27ac, and CTCF signals. These regions likely represent TF-driven regulatory sites.

• CA (Chromatin accessibility only):
  cCREs marked by high chromatin accessibility but lacking H3K4me3, H3K27ac, and CTCF signals. They may represent open chromatin regions with potential or context-dependent regulatory activity.

• TF (Transcription factor binding):
  cCREs overlapping transcription factor binding clusters but showing low chromatin accessibility and low levels of H3K4me3, H3K27ac, and CTCF signals. These sites may reflect transient or condition-specific TF occupancy.

This figure summarizes how candidate cis-regulatory elements (cCREs) are classified based on chromatin accessibility, histone marks, CTCF binding, and transcription factor occupancy. Source: https://screen.wenglab.org/about

Parameters

Parameter	Type	Default	Description	Example
query	GRangesList or GRanges	—	Query regions to be annotated with cCRE elements.	query = my_peaks
out_dir	character	“./”	Output directory used to store annotation results. The directory is created automatically if it does not exist.	out_dir = “./ccre_results”
ref_genome	character	“hg38”	Reference genome version. Supported options are “hg38” and “mm10”.	ref_genome = “mm10”
mode	character	“nearest”	Annotation assignment mode. “nearest” assigns each region to the closest cCRE category, while “weighted” assigns categories proportionally based on overlap length.	mode = “weighted”
plot	logical	TRUE	Whether to generate a stacked barplot showing the distribution of cCRE categories.	plot = FALSE

Output Files

The function generates the following output files in the specified out_dir:

1. cCRE annotation table - ccre_distribution.tsv
   • Tab-delimited table of cCRE category percentages
   • Rows: samples/clusters from input
   • Columns: cCRE categories
   • Values: percentage of each category class per sample/cluster
2. cCRE distribution plot - ccre_distribution.pdf (if plot = TRUE)
   • Stacked bar plot showing cCRE composition across samples or clusters
   • X-axis: percentage (0-100%)
   • Y-axis: samples/clusters

1C. ChromHMM Distribution Analysis

The chromhmm_distribution() function annotates genomic regions with chromatin states using ChromHMM data, calculates overlap-based chromatin state proportions, and produces a summary table with an optional visualization.

• Acet: Acetylation-associated active regulatory regions


• EnhWk: Weak enhancers


• EnhA: Active enhancers


• PromF: Promoter flanking regions


• TSS: Transcription start sites

• TxWk: Weak transcription


• TxEx: Transcription with exon signals


• Tx: Transcription

• OpenC: Open chromatin


• TxEnh: Transcribed enhancers

• ReprPCopenC: Polycomb-repressed regions with open chromatin

• BivProm: Bivalent promoters


• ZNF: Zinc finger gene clusters

• ReprPC: Polycomb-repressed chromatin


• HET: Constitutive heterochromatin

• GapArtf: Assembly gaps and artifacts


• Quies: Quiescent background

Parameters

Parameter	Type	Default	Description	Example
query	GRangesList or GRanges	—	Query regions to be annotated with cCRE elements.	query = my_peaks
out_dir	character	“./”	Output directory used to store annotation results. The directory is created automatically if it does not exist.	out_dir = “./ccre_results”
ref_genome	character	“hg38”	Reference genome version. Supported options are “hg38” and “mm10”.	ref_genome = “mm10”
mode	character	“nearest”	Annotation assignment mode. “nearest” assigns each region to the closest cCRE category, while “weighted” assigns categories proportionally based on overlap length.	mode = “weighted”
plot	logical	TRUE	Whether to generate a stacked barplot showing the distribution of cCRE categories.	plot = FALSE

Output Files

The function generates the following output files in the specified out_dir:

1. ChromHMM annotation table - chromhmm_distribution.tsv
   • Tab-delimited table of ChromHMM state percentages
   • Rows: samples/clusters from input
   • Columns: cCRE categories
   • Values: percentage of each category class per sample/cluster
2. ChromHMM distribution plot - chromhmm_distribution.pdf (if plot = TRUE)
   • Stacked bar plot showing repeat class composition across samples or clusters
   • X-axis: percentage (0-100%)
   • Y-axis: samples/clusters

1D. Repeat Distribution Analysis

The repeat_distribution() function anotates genomic regions with chromatin states using ChromHMM data, computes overlap-based chromatin state percentages, and generates a summary table along with an optional visualization.

• SINE: Short interspersed nuclear elements


• LINE: Long interspersed nuclear elements


• LTR: Long terminal repeat retrotransposons


• Retroposon: Non-LTR retrotransposon-derived elements


• RC: Rolling-circle transposons

• DNA: DNA transposons

• Satellite: Satellite repeats


• Simple_repeat: Simple sequence repeats


• Low_complexity: Low-complexity sequences

• rRNA: Ribosomal RNA repeats


• tRNA: Transfer RNA repeats


• snRNA: Small nuclear RNA repeats


• scRNA: Small cytoplasmic RNA repeats


• srpRNA: Signal recognition particle RNA repeats


• RNA: Other RNA-related repeats

• Unknown: Unclassified repeat elements

Parameters

Parameter	Type	Default	Description	Example
query	GRangesList or GRanges	—	Query regions to be annotated with cCRE elements.	query = my_peaks
out_dir	character	“./”	Output directory used to store annotation results. The directory is created automatically if it does not exist.	out_dir = “./ccre_results”
ref_genome	character	“hg38”	Reference genome version. Supported options are “hg38” and “mm10”.	ref_genome = “mm10”
mode	character	“nearest”	Annotation assignment mode. “nearest” assigns each region to the closest cCRE category, while “weighted” assigns categories proportionally based on overlap length.	mode = “weighted”
plot	logical	TRUE	Whether to generate a stacked barplot showing the distribution of cCRE categories.	plot = FALSE

Output Files

The function generates the following output files in the specified out_dir:

1. Repeat annotation table - repeat_distribution.tsv
   • Tab-delimited table of repeat class percentages
   • Rows: samples/clusters from input GRangesList
   • Columns: repeat element categories ordered as:
     • Transposable elements: SINE, LINE, LTR, Retroposon, RC, DNA
     • Structural variants: Satellite, Simple_repeat, Low_complexity
     • RNA genes: rRNA, tRNA, snRNA, scRNA, srpRNA, RNA
     • Unknown
   • Values: percentage of each repeat class per sample
2. Repeat distribution plot - repeat_distribution.pdf (if plot = TRUE)
   • Stacked barplot visualization
   • X-axis: percentage (0-100%)
   • Y-axis: samples/clusters (reversed order)
   • Colors: Dark2 palette from RColorBrewer
   • Dimensions: 6 inches (width) × 5 inches (height)
   • Features: Minimal theme with horizontal legend at right

2. TFBS Enrichment Analysis

2A. Generate matched control regions

The get_matched_control() function generates background control regions by randomly selecting genes with similar length to the nearest gene of each query region, then placing control regions at the same TSS-relative distance on the selected genes. This approach preserves the relationship between peaks and gene structure while avoiding biases from using the same genomic neighborhoods.

What this function does:

For each query genomic region: - Identify the nearest gene (used only to define the TSS-relative offset) - Compute the signed distance to the gene TSS, accounting for strand

To generate control regions: - Select genes with similar lengths (excluding the original gene) - Randomly sample matched genes as anchors - Place control regions at the same TSS-relative positions

Quality control: - Automatically relax gene length tolerance if candidates are insufficient - Discard control regions outside valid chromosome boundaries

Output: - Generate multiple control regions per query region (configurable replicates) - Return all control regions as a single GRanges object

Parameters

Parameter	Type	Default	Description	Example
query	GRanges or GRangesList	—	Query regions used for control region generation. When a GRangesList is provided, control regions are generated separately for each element and then combined.	query = my_peaks query = peak_clusters
ref_genome	character	“hg38”	Reference genome version. Supported options are “hg38” (Human GRCh38) and “mm10” (Mouse GRCm38).	ref_genome = “hg38”
ref_source	character	“knownGene”	Gene annotation source used for defining gene models. “knownGene” uses UCSC TxDb annotations, while “GENCODE” uses GENCODE reference annotations (v49 for hg38 and vM23 for mm10).	ref_source = “GENCODE”
style	character	NULL	Chromosome naming style. If NULL, the naming style is automatically inferred from the input query object.	style = “UCSC”
n_rep	integer	1	Number of control regions generated per query region.	n_rep = 3
regions	integer	800	Width of control regions in base pairs, centered on the calculated genomic position.	regions = 500
seed	integer	42	Random seed used to ensure reproducible control region selection.	seed = 12345
length_tolerance	numeric	0.2	Initial tolerance for gene length matching. A value of 0.2 corresponds to ±20% tolerance. If insufficient candidates are found, the tolerance is automatically relaxed up to ±100%.	length_tolerance = 0.3

• Input flexibility:
  • Accepts GRanges: Single set of peaks (e.g., all CTCF binding sites)
  • Accepts GRangesList: Multiple peak sets (e.g., biclustering results with named clusters)
  • For GRangesList, controls are generated per element, then merged into single GRanges output
• Gene annotation sources:
  • knownGene: UCSC knownGene (TxDb), conservative and widely used
  • GENCODE: Filtered GENCODE annotations
    • Only genes with supported transcript evidence are retained
• Control region generation:
  • For each query peak, the nearest gene is first identified and used only as an anchor to define the signed distance between the peak center and the gene TSS.
  • A set of matched genes is then selected based on gene length similarity, with an initial tolerance of ±length_tolerance that is adaptively relaxed up to ±100% if needed.
  • Control regions are generated by placing regions at the same TSS-relative distance on the matched genes.
  • Only standard autosomes and sex chromosomes are used (hg38: chr1–chr22, chrX, chrY; mm10: chr1–chr19, chrX, chrY), and any control regions falling outside valid chromosome boundaries are discarded.

Output

The function returns a GRanges object containing all successfully generated control regions.

• Object type: GRanges (GenomicRanges package)

• Number of regions:

  • For GRanges input: Up to n_rep × length(query) regions
  • For GRangesList input: Up to n_rep × sum(lengths(query)) regions
  • Actual count may be lower if some controls fail boundary validation
  • Each query peak ideally generates n_rep control regions

• Region characteristics:

  • Width: All regions have uniform width specified by regions parameter
  • Positioning: Centered on calculated TSS-relative positions
  • Chromosome style: Follows the specified style parameter (e.g., “chr1” for UCSC)
  • Genome info: Includes seqlengths from reference genome
  • No metadata columns: Clean GRanges ready for downstream analysis

GRanges object with 9 ranges and 0 metadata columns:

      seqnames        ranges      strand
      <Rle>        <IRanges>     <Rle>
[1]   chr21    6497621-6498421      *
[2]   chr21    8197426-8198226      *
[3]   chr21   10482659-10483459     *
[4]   chr21   13979717-13980517     *
[5]   chr21   14216386-14217186     *
[6]   chr21   15729512-15730312     *
[7]   chr21   16301884-16302684     *
[8]   chr21   25735402-25736202     *
[9]   chr21   26059459-26060259     *

-------
seqinfo: 1 sequence from an unspecified genome; no seqlengths


Usage Examples

library(multiEpiCore)

# Load query peaks
query_peaks <- rtracklayer::import("CTCF_peaks.bed")

# Basic usage with single GRanges
control_regions <- get_matched_control(
  query_gr = query_peaks,
  ref_genome = "hg38",
  regions = 800        # 800bp control regions
)

# Generate multiple controls per query
control_regions <- get_matched_control(
  query = query_peaks,
  ref_genome = "hg38",
  n_rep = 5,           # 5 controls per query
  regions = 800
)

# Mouse genome with GENCODE annotations
control_regions <- get_matched_control(
  query = query_peaks,
  ref_genome = "mm10",
  ref_source = "GENCODE",  # Use GENCODE instead of knownGene
  n_rep = 3,
  length_tolerance = 0.3,
  seed = 123
)

# GRangesList input (biclustering results)
cluster_file <- read.table("biclustering_results.tsv", header = TRUE)
peaks_gr <- makeGRangesFromDataFrame(cluster_file, keep.extra.columns = TRUE)
peaks_grl <- split(peaks_gr, peaks_gr$cluster)

control_regions <- get_matched_control(
  query = peaks_grl,           # GRangesList with named clusters
  ref_genome = "hg38",
  ref_source = "knownGene",
  n_rep = 2
)

2B. TFBS Enrichment Calculation

The TFBS_enrichment() function performs motif enrichment analysis comparing a set of query genomic regions against control regions using Fisher’s exact test to identify significantly enriched transcription factor binding motifs.

What this function does:

• Compares query genomic regions (GRanges) against background/control regions (GRanges)

• Works directly with GRanges objects without file I/O for region inputs

• Overlaps regions with a comprehensive motif library (stored as RDS files)

• Optionally filters motif sites using functional region annotations (GRanges)

• Counts motif occurrences in query vs control regions using countOverlaps()

• Performs Fisher’s exact test for each motif with pseudocount correction

• Calculates odds ratios with standard errors

• Adjusts p-values for multiple testing using Benjamini-Hochberg FDR

• Identifies transcription factors with significantly enriched binding sites

• Provides quantitative enrichment statistics for downstream interpretation

Parameters

Parameter	Type	Default	Description	Example
query	GRanges or GRangesList	—	Target genomic regions used for motif enrichment analysis. When a GRangesList is provided, the analysis is performed separately for each element.	query = my_peaks query = peak_clusters
control	GRanges	—	Control or background genomic regions used for comparison. When query is a GRangesList, the same control set is applied to all elements.	control = background_peaks
regions	integer or NULL	NULL	Width in base pairs used to resize all regions around their center. If NULL, the original region sizes are retained.	regions = 500
ref_genome	character	“hg38”	Reference genome version. Supported options are “hg38” (human) and “mm10” (mouse).	ref_genome = “hg38”
functional_region	GRanges or NULL	NULL	Optional functional regions (e.g. ATAC-seq peaks) used to filter motif sites. Only motif occurrences overlapping these regions are considered.	functional_region = open_chromatin
out_dir	character	“./”	Output directory path used to save result files. For GRanges input, this can also be a full file path. The directory is created automatically if it does not exist.	out_dir = “./results/”
style	character or NULL	NULL	Chromosome naming style (e.g. “UCSC”, “NCBI”). If NULL, the style is automatically detected from the input query object.	style = “UCSC”

Key parameter notes:

• Input flexibility:
  • GRanges input: Single enrichment analysis, output saved to out_dir/TFBS_enrichment.tsv
  • GRangesList input: Batch processing, one TSV file per element named TFBS_enrichment_<label>.tsv
  • If out_dir is a file path (not directory) for GRanges input, uses that exact path
• Region resizing:
  • If regions = NULL: Regions keep their original widths
  • If regions specified: Both query and control regions are resized to this width, centered on each region’s midpoint
  • Useful for standardizing region sizes across datasets
• Functional region filtering:
  • Restricts analysis to motif sites overlapping functional regions
  • Reduces noise from motifs in inaccessible chromatin
  • Recommended when chromatin accessibility data is available
• Statistical method:
  • Adds pseudocount (+1) to all counts to avoid division by zero
  • Uses one-sided Fisher’s exact test (alternative = “greater”)
  • Tests enrichment hypothesis (motif more frequent in query than control)

Output Files

For GRanges input: - Single TSV file: <out_dir>/TFBS_enrichment.tsv

For GRangesList input: - Multiple TSV files: <out_dir>/TFBS_enrichment_<label>.tsv (one per element)

TSV file format: Each TSV file contains motif enrichment statistics with the following columns:

• Tab-separated table with motif enrichment statistics
• Rows: Individual transcription factor motifs from JASPAR database
• Columns:
  • Row names: Motif identifiers (e.g., “MA0139.1” for CTCF)
  • query_hit: Number of query regions overlapping motif sites
  • control_hit: Number of control regions overlapping motif sites
  • query_off: Number of query regions NOT overlapping motif sites
  • control_off: Number of control regions NOT overlapping motif sites
  • odds_ratio: Odds ratio from Fisher’s exact test (enrichment magnitude)
    • Value > 1: Motif enriched in query regions
    • Value < 1: Motif depleted in query regions
    • Higher values indicate stronger enrichment
  • pvalue: Raw p-value from Fisher’s exact test (one-sided, greater)
    • Tests if motif is significantly more frequent in query vs control
    • Lower values indicate stronger statistical significance
  • odds_ratio_se: Standard error of log odds ratio
    • Measure of uncertainty in odds ratio estimate
    • Useful for calculating confidence intervals
  • FDR: False Discovery Rate (Benjamini-Hochberg adjusted p-value)
    • Corrects for multiple testing across all motifs
    • Typical threshold: FDR < 0.05 or 0.01
• Sorted by row names (motif IDs)
• Can be sorted by FDR or odds_ratio for prioritization

Example Usage

library(multiEpiCore)

# =======================================
# Enrichment analysis with GRanges
# =======================================
query_region <- rtracklayer::import("query_peaks.bed")
control_region <- rtracklayer::import("control_peaks.bed")

# Using original region widths
TFBS_enrichment(
  query = query_peaks,
  control = control_peaks,
  out_dir = "./results/",
  ref_genome = "hg38"
)

# Resize all regions to 200bp centered windows
TFBS_enrichment(
  query = query_peaks,
  control = control_peaks,
  regions = 200,
  out_dir = "./results/",
  ref_genome = "hg38"
)

# With functional region filtering (e.g., open chromatin)
atac_peaks <- rtracklayer::import("ATAC_peaks.bed")
TFBS_enrichment(
  query = query_peaks,
  control = control_peaks,
  regions = 500,
  functional_region = atac_peaks,
  out_dir = "./results/",
  ref_genome = "hg38"
)

# =======================================
# Batch processing with GRangesList
# =======================================
cluster_file <- read.table("biclustering_results.tsv", header = TRUE)
peaks_gr <- makeGRangesFromDataFrame(cluster_file, keep.extra.columns = TRUE)
peaks_grl <- split(peaks_gr, peaks_gr$cluster)

TFBS_enrichment(
  query = peaks_grl,           # GRangesList with clusters A, B, C
  control = control_peaks,
  regions = 800,
  out_dir = "./results/",
  ref_genome = "hg38"
)

---

2C. TFBS Enrichment Heatmap Visualization

The TFBS_enrichment_heatmap() function generates heatmaps to visualize transcription factor binding site (TFBS) enrichment patterns across multiple genomic clusters or experimental conditions, using results from TFBS_enrichment() analysis.

What this function does:

• Reads multiple TFBS enrichment result files from TFBS_enrichment() output

• Combines odds ratios, FDR values, and query hits across all samples/clusters

• Filters TFBS based on significance (FDR ≤ 0.05), effect size (odds ratio ≥ 2), and coverage criteria

• Allows filtering for specific transcription factors of interest via pattern matching

• Applies log2 transformation to odds ratios for symmetric visualization

• Generates a comprehensive heatmap showing all TFBS passing filtering criteria

• (Optional) Creates a focused heatmap displaying the union of top N most enriched TFBS per sample

• (Optional) Supports optional hierarchical clustering of samples for pattern discovery

• Produces publication-ready visualizations with consistent formatting and scalable dimensions

• Exports log2-transformed odds ratio and FDR matrices for downstream analysis

Parameters

Parameter	Type	Default	Description	Example
tsv_path	character vector	—	Vector of file paths to TFBS enrichment result TSV files generated by TFBS_enrichment().	tsv_path = c(“cluster1.tsv”, “cluster2.tsv”)
label	character vector	—	Vector of sample or cluster labels corresponding to tsv_path. The length must match tsv_path.	label = c(“Cluster1”, “Cluster2”, “Cluster3”)
out_dir	character	—	Output directory used to save generated heatmaps and underlying data matrices.	out_dir = “./heatmaps”
top_n	integer	NULL	Number of top TFBS to display in the secondary heatmap, selected based on coefficient of variation (CV = SD / mean) across samples. If NULL, only the full heatmap is generated.	top_n = 50
selected_tfs	character vector	NULL	Vector of transcription factor names or substrings used to filter TFBS rows. Matching is case-insensitive. If NULL, all TFBS are retained.	selected_tfs = c(“CTCF”, “AP1”, “STAT”)
apply_cluster	logical	FALSE	Whether to apply hierarchical clustering to columns and reorder them for visualization. If TRUE, columns are clustered and reversed.	apply_cluster = TRUE

• Input file requirements:
  • Files must be TSV format with tab-separated values
  • Must be output from TFBS_enrichment() function
  • Required columns: odds_ratio, FDR, query_hit
  • Row names: TFBS/motif IDs (e.g., JASPAR identifiers)
  • All files should have consistent TFBS IDs (mismatches will trigger warnings)
• Filtering logic:
  • Stringent default criteria (OR ≥ 2, FDR ≤ 0.05)
  • Requires meeting ALL criteria in at least ONE sample
  • query hit threshold: 10th percentile prevents low-coverage artifacts
  • Only non-NA rows/columns retained
  • Filters applied sequentially: NA removal → biological criteria → selected_tfs
• Top N selection strategy:
  • Selects TFBS with highest coefficient of variation (CV) across samples
  • CV calculated on original odds ratios: CV = SD / |mean|
  • Prioritizes TFBS showing greatest variation between conditions
• Column clustering:
  • Without clustering (apply_cluster = FALSE): Columns ordered by sorted labels
  • With clustering (apply_cluster = TRUE):
    • Hierarchical clustering applied (Euclidean distance, complete linkage)
    • Column order extracted and reversed for better visualization
    • Final heatmap drawn with fixed order (no dendrogram shown)
  • Clustering applied identically to both full and top N heatmaps if both generated

Output Files

The function generates the following output files in the specified out_dir:

1. Full matrix heatmap - TFBS_heatmap_all.pdf
   • Heatmap showing all TFBS passing filtering criteria (OR ≥ 2, FDR ≤ 0.05, query_hit ≥ 10th percentile)

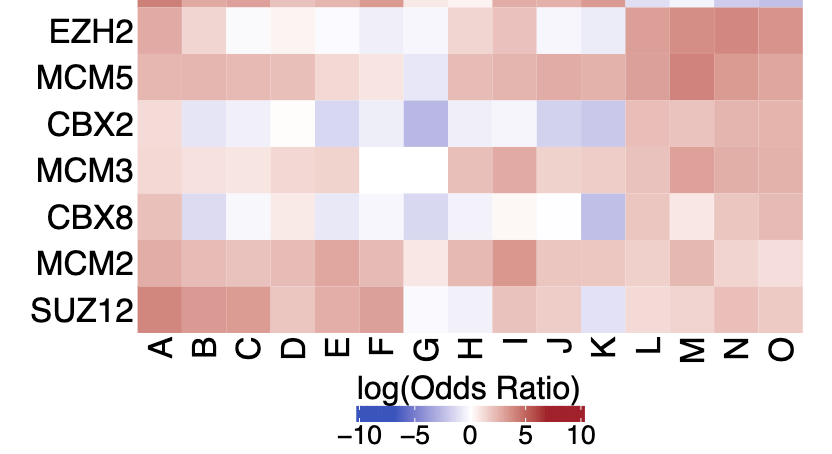

   • Log2(odds ratio) visualization with symmetric blue-white-red color scale
   • Optional column clustering if apply_cluster = TRUE
2. Top N motifs heatmap - TFBS_heatmap_top<n>.pdf (if top_n provided)
   • Heatmap showing top N TFBS with highest coefficient of variation across samples
   • Selects TFBS showing greatest variation between conditions
   • Uses same color scale as full heatmap for consistency
   • Optional column clustering if apply_cluster = TRUE

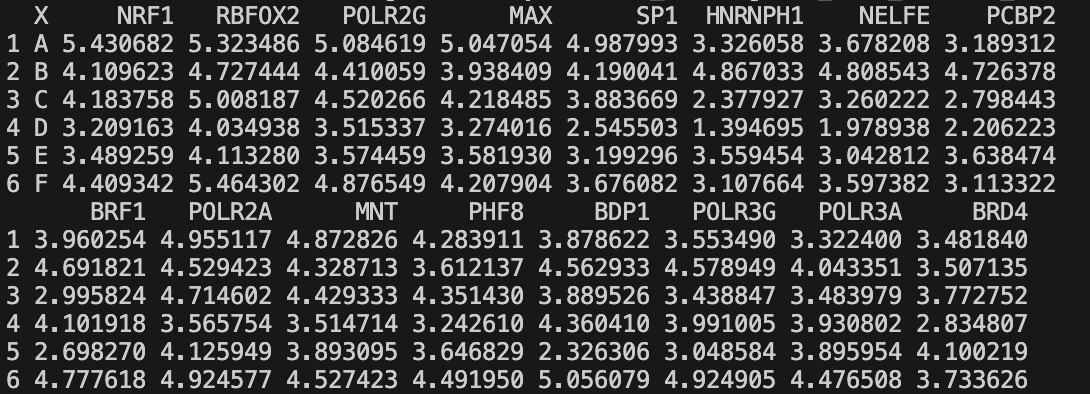

3. Log2 odds ratio matrix - TFBS_odds_ratio_log2.csv
   • Log2-transformed odds ratios for filtered TFBS (numerical data underlying the heatmaps)
   • Rows: TFBS IDs
   • Columns: Sample/cluster names

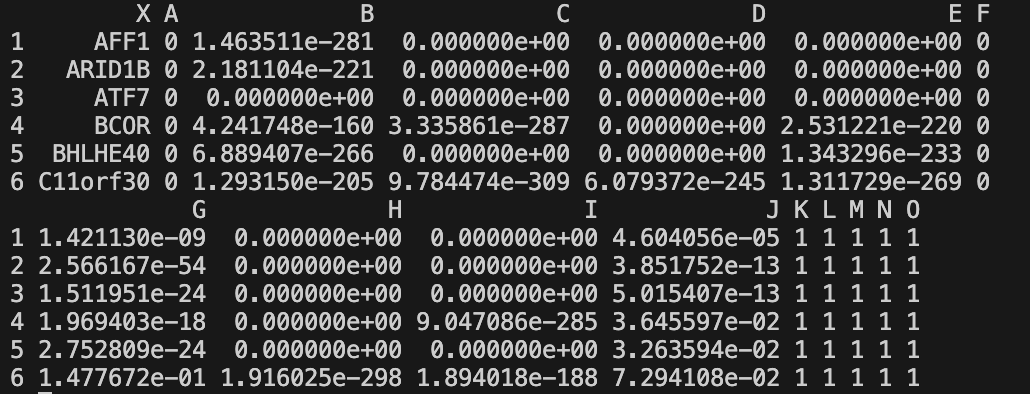

4. FDR matrix - TFBS_FDR.csv
   • FDR-adjusted p-values for each TFBS-sample pair
   • Rows: TFBS IDs (same order as TFBS_odds_ratio_log2.csv)
   • Columns: Sample/cluster names (same order as TFBS_odds_ratio_log2.csv)

Example Usage

library(multiEpiCore)

# Example 1: Basic usage - generate heatmap for all filtered TFBS
TFBS_enrichment_heatmap(
  tsv_path = c(
    "output/TFBS_enrichment_Cluster1.tsv",
    "output/TFBS_enrichment_Cluster2.tsv",
    "output/TFBS_enrichment_Cluster3.tsv"
  ),
  label = c("Cluster1", "Cluster2", "Cluster3"),
  out_dir = "heatmaps/all_tfbs"
)

# Example 2: With top N selection - focus on most enriched TFBS
TFBS_enrichment_heatmap(
  tsv_path = c(
    "output/TFBS_enrichment_Cluster1.tsv",
    "output/TFBS_enrichment_Cluster2.tsv",
    "output/TFBS_enrichment_Cluster3.tsv"
  ),
  label = c("Cluster1", "Cluster2", "Cluster3"),
  out_dir = "heatmaps/top10",
  top_n = 10
)

# Example 3: Filter for specific transcription factors
TFBS_enrichment_heatmap(
  tsv_path = c(
    "output/TFBS_enrichment_TypeA.tsv",
    "output/TFBS_enrichment_TypeB.tsv",
    "output/TFBS_enrichment_TypeC.tsv"
  ),
  label = c("TypeA", "TypeB", "TypeC"),
  out_dir = "heatmaps/selected_tfs",
  top_n = 15,
  selected_tfs = c("CTCF", "AP1", "STAT", "NRF", "FOXO")
)

---
