Wrapper Function

The biclustering_wrapper() function runs the full biclustering analysis workflow in one call. It optionally merges multiple input matrices, applies transformations, performs highly variable region filtering, runs biclustering on the filtered matrix, and generates downstream annotation results including genomic distribution summaries and TFBS enrichment.

Parameters

Parameter Type Default Description Example
cm_path character / character vector — Path to the input count matrix in .feather format, or a vector of paths to multiple matrices. When a vector is provided (length > 1), matrices are merged before downstream processing. cm_path = c(“cm1.feather”, “cm2.feather”)
out_dir character — Output directory for all generated files, including transformed matrices, cluster tables, and annotation results. out_dir = “./biclustering_out”
apply_filter logical TRUE Whether to further filter genomic regions using detect_hvr(). Recommended when the genome was segmented into equal-sized bins (numeric regions). Set to FALSE when the input matrix was built from user-provided intervals (region file path), where additional filtering is typically unnecessary. apply_filter = TRUE
row_km integer 15 Number of k-means clusters for rows (genomic regions). row_km = 20
col_km integer 3 Number of k-means clusters for columns (CRF pairs). col_km = 4
apply_annotation logical TRUE Whether to perform downstream annotation on biclustered regions, including genomic distribution summaries and TFBS enrichment. Recommended for binned genomes (numeric regions). For user-specified regions, set to FALSE if annotation is not needed. apply_annotation = TRUE
ref_genome character “hg38” Reference genome version used in annotation and control region generation. Supported: “hg38”, “mm10”. ref_genome = “mm10”
ref_source character “knownGene” Gene annotation source used in downstream analysis. Supported: “knownGene” (UCSC knownGene via TxDb), “GENCODE”. ref_source = “GENCODE”
distributions character vector c(“genic”,“ccre”) Genomic feature distributions to summarize in the annotation step. Options include: “genic”, “ccre”, “cpg”, “repeat”. distributions = c(“genic”,“repeat”)
plot logical TRUE Whether to generate diagnostic plots during filtering and biclustering steps. This controls plotting behavior in detect_hvr() and biclustering(). plot = FALSE

Example Usage

library(multiEpiCore)
# Test Data
cm_path <- c("count_matrix/C1_Count_Matrix_merged.feather",
             "count_matrix/C2_Count_Matrix_merged.feather")
biclustering_wrapper(
  cm_path = cm_path,
  out_dir = "bicluster",
  distributions = c("genic","ccre", "cpg", "repeat")
)

1. Merge Count Matrices

The merge_count_matrices() function merges multiple count matrices (Feather files) into a single count matrix by aligning genomic regions and combining counts across samples.

Parameters

Parameter Type Default Description
cm_path character vector - A vector of feather file paths to be merged (.feather)
out_dir character “./” Output directory
check_consistency boolean TRUE If TRUE, only keep rows (positions) and columns (samples) that exist in all input files. If FALSE, merge all rows and columns, filling missing values with 0.

Example Usage

library(multiEpiCore)
# Test Data
cm_path <- c(
  "count_matrix/C1_Count_Matrix_800.feather",
  "count_matrix/C2_Count_Matrix_800.feather"
)
merge_count_matrices(cm_path = cm_path, out_dir = out_dir)

2. Apply transformation

The apply_transformations() function performs a sequential series of normalization and transformation steps on a count matrix and outputs the processed result.

Parameters

Parameter Type Default Description
cm_path character - Path to the input count matrix (.feather). The input file must be a valid .feather file containing a positional column (pos) or any first column that uniquely identifies genomic intervals. All remaining columns must be numeric.
out_dir character “./” Output directory
transformations character vector c(“remove0”, “libnorm”, “log2p1”, “qnorm”) Vector specifying the transformation pipeline. Steps are executed in order, and the behavior depends on the sequence you provide (see the table below for details).
save_each_step logical FALSE If TRUE, writes a .feather file after each step, allowing inspection of intermediate matrices.

The order of operations in transformations directly determines the output. Below is the full list of supported steps:

Transformation Description
remove0 Remove rows where all samples have zero counts
libnorm Library size normalization (CPM, counts per million)
log2p1 Log2 transformation: log2(x + 1)
qnorm Quantile normalization across samples
minmaxnorm Scale values to [0, 1] range
sqrt Square root transformation

Output Files

After processing all selected transformations, a final Feather file named:

<original_name>_transformed.feather

If set save_each_step = TRUE, the output path will be:

out_dir/
├── [count_matrix_prefix]_transformed.feather
├── [count_matrix_prefix]_remove0.feather
├── [count_matrix_prefix]_remove0_libnorm.feather
├── [count_matrix_prefix]_remove0_libnorm_log2p1.feather
└── [count_matrix_prefix]_remove0_libnorm_log2p1_qnorm.feather

Example Usage

library(multiEpiCore)
# Test Data
apply_transformations(
  cm_path = "Count_Matrix_merged.feather",
  transformations = c("remove0", "libnorm", "log2p1", "qnorm"),
  out_dir  = "bicluster",
  save_each_step  = FALSE
)

3. Highly Variable Regions

This workflow provides two complementary approaches for identifying highly variable genomic regions:

  • Integrated workflow (recommended): The detect_hvr() function combines mean-variance modeling and feature selection in a single step, internally calling mav_screen() and filter_hvr() in sequence.

  • Step-by-step workflow: For users who need fine-grained control or want to inspect intermediate results, the individual functions mav_screen() and filter_hvr() can be called separately.

Wrapper Function Overview

The detect_hvr() function streamlines the entire process of identifying highly variable genomic regions by integrating mean-variance modeling and feature selection into a single function call.

Parameters

Parameter Type Default Description Example
transformed_cm_path character — Path to the transformed count matrix file in .feather format. The file must contain a pos column. transformed_cm_path = “data_transformed.feather”
out_dir character “./” Output directory path for all generated results. out_dir = “./hvr_results”
keep_percent numeric 0.01 Fraction of total regions to retain (range: 0–1). Selected regions are distributed equally across all bins. keep_percent = 0.05
log2mean_quantile_thres numeric 0.99 Quantile threshold (range: 0–1) applied to log2(mean) expression. Only regions above this threshold are retained in the final selection. log2mean_quantile_thres = 0.95
plot logical FALSE Whether to generate diagnostic plots for both MAV screening and feature selection steps. plot = TRUE

Example Usage

library(multiEpiCore)
# Test Data
path <- "bicluster/Count_Matrix_merged_transformed.feather"
detect_hvr(transformed_cm_path = path, out_dir = "./count_matrix/", plot = TRUE)

3A. Model mean-variance relationship and calculate hypervariance metrics

The mav_screen() function models the mean–variance relationship of transformed count data across genomic regions and identifies regions exhibiting variability beyond technical expectations. It computes hypervariance metrics that quantify each genomic region’s deviation from the expected mean–variance trend.

What this function does:

  • (Model mean-variance relationship) Fits a regression model in log2 space to characterize the global relationship between mean signal intensity and variance across all genomic regions. This model captures the baseline mean–variance trend expected under technical variation.

  • (Calculate expected variance) For each genomic region, estimates the expected variance given its mean signal level using the fitted mean–variance model. This expected variance serves as the null reference for assessing excess variability.

  • (Normalize regional signals) Centers the signal of each genomic region by its observed mean and scales it by the expected standard deviation derived from the model. This normalization removes mean-dependent variance effects, enabling fair comparison of variability across regions with different signal levels.

  • (Quantify overdispersion) Computes hypervariance metrics for each genomic region, defined as the sum of squared normalized deviations divided by the corresponding degrees of freedom. Regions with elevated hypervariance values exhibit variability exceeding that expected from the global mean–variance relationship, consistent with biological heterogeneity rather than technical noise.

  • (Output region-level statistics) Outputs comprehensive region-level statistics, including observed mean and variance, expected variance, normalized values, and hypervariance metrics, to a feather file for downstream selection of highly variable genomic regions and quality control.

Parameters

Parameter Type Default Description Example
transformed_cm_path character — Path to the transformed count matrix file in .feather format. The file must contain a pos column. transformed_cm_path = “Count_Matrix_transformed.feather”
out_dir character “./” Output directory path for all generated results. out_dir = “./mav_screen_results”
fitting_model character “gam” Model used to fit the mean–variance relationship. Supported options are “gam” and “loess”. fitting_model = “loess”
k integer 40 Number of basis functions for GAM spline fitting. This parameter is only used when fitting_model = “gam”. k = 30
span numeric 0.5 Smoothing span for LOESS fitting. This parameter is only used when fitting_model = “loess”. span = 0.3
seed integer 42 Random seed used to ensure reproducibility during sampling. seed = 123
font_size numeric 10 Font size used for plot labels and axes. font_size = 12
nrow_sample_per numeric 0.2 Proportion of rows (range: 0–1) to randomly sample for density plot generation. nrow_sample_per = 0.1
plot logical FALSE Whether to generate and save diagnostic plots as .png files. plot = TRUE

  • Input data requirements:

    The transformed_cm_path parameter refers directly to a pre-processed count matrix stored as a .feather file. This file must not contain raw counts. Instead, the matrix should already be:

    • Pre-normalized (e.g., quantile normalization, TPM, RPKM, or other appropriate normalization)
    • Log-transformed if necessary for your analysis
    • Batch-corrected if applicable
    • Quality-filtered to remove low-quality regions or samples

    Additionally, the .feather file must have the first column named “pos” containing region identifiers (e.g., chr1_9601_10400).

  • Model selection:

    • Use GAM (default) for smooth, flexible fits with automatic complexity control
    • Use LOESS for local fitting, better for non-linear patterns

  • Memory considerations: For very large datasets, adjust nrow_sample_per to reduce memory usage for density plots.

Output Files

The function generates the following output files in the specified out_dir (default: “./”):

  1. Mean-Variance Statistics File - <input_name>_mav_screen.feather
    • Feather format dataframe with mean-variance statistics for each genomic region
    • Contains the following columns:
      • pos: Original region identifier
      • mean: Mean expression across all samples
      • var: Variance across all samples
      • var_expect: Expected variance from fitted mean-variance model
      • norm_mean: Mean of normalized values (should be ~0)
      • norm_var: Variance of normalized values (should be ~1)
      • hypervar: Hypervariance, sum of squared normalized values divided by (n-1)
      • log2_mean: Log2-transformed mean expression
      • log2_var: Log2-transformed variance
      • log2_var_expected: Log2-transformed expected variance from fitted model
    pos mean var var_expect norm_mean norm_var hypervar
    chr1_9601_10400 0.60482747 3.2718638368 2.999402e+00 2.999402e+00 -2.400220e-17 1.0908388
    chr1_10401_11200 0.06557750 0.1646858526 1.620011e-01 1.620011e-01 -6.149439e-18 1.0165723
    chr1_12801_13600 0.03007577 0.0003917656 6.413126e-04 6.413126e-04 -1.840330e-18 0.6108808
    chr1_14401_15200 0.02905376 0.0001423452 1.494525e-04 1.494525e-04 9.551020e-17 0.9524448
    chr1_15201_16000 0.02994487 0.0007778492 5.396820e-04 5.396820e-04 -4.221334e-17 1.4413104
    chr1_16001_16800 0.02875908 0.0001076822 9.580701e-05 9.580701e-05 -1.361187e-16 1.1239494
    log2_mean log2_var log2_var_expected
    -0.7254044 1.710113 1.585175
    -3.9306552 -2.602211 -2.625862
    -5.0552546 -11.317722 -10.603762
    -5.1051311 -12.778318 -12.731808
    -5.0615474 -10.328222 -10.873420
    -5.1198388 -13.180932 -13.352449

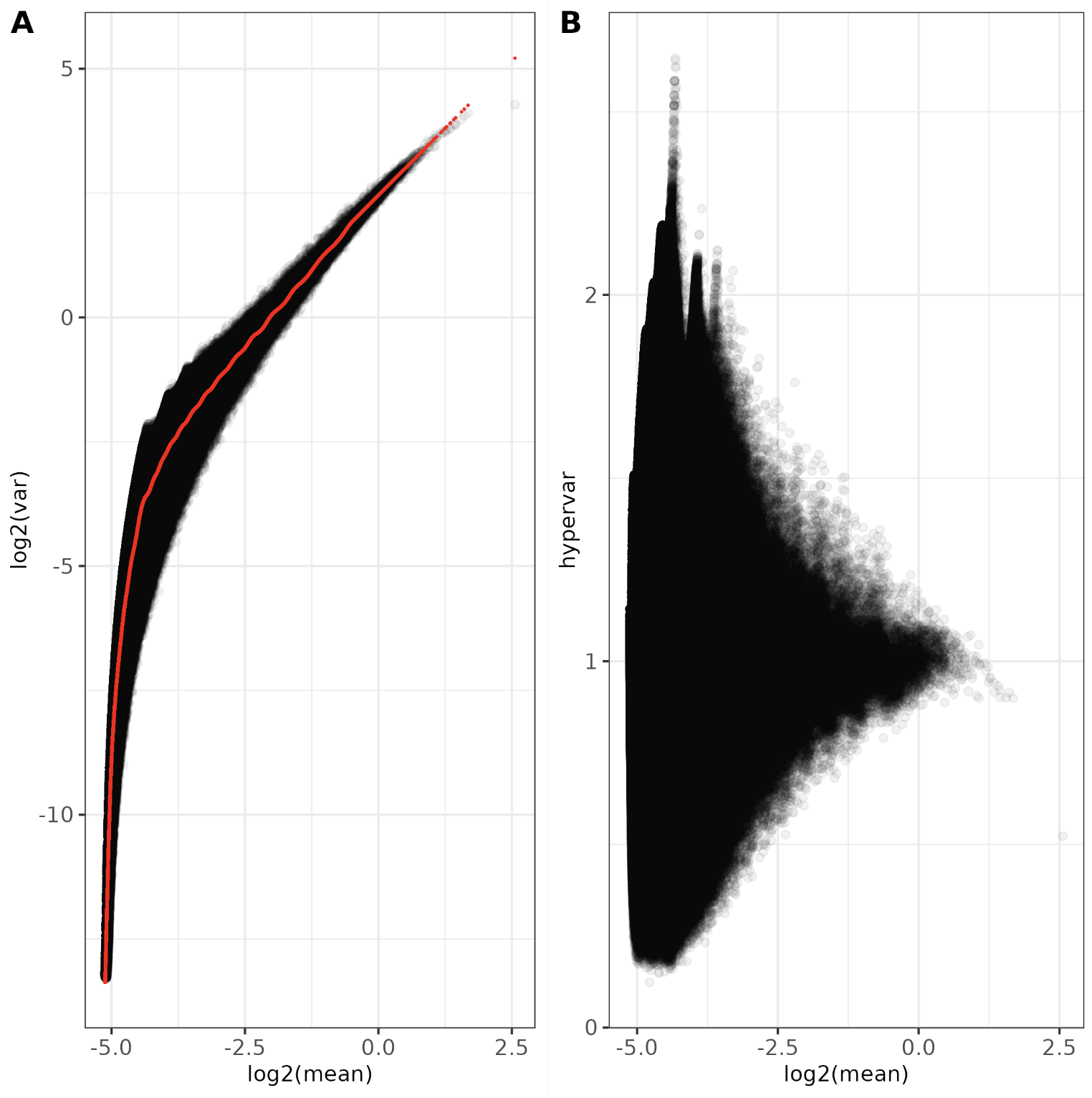

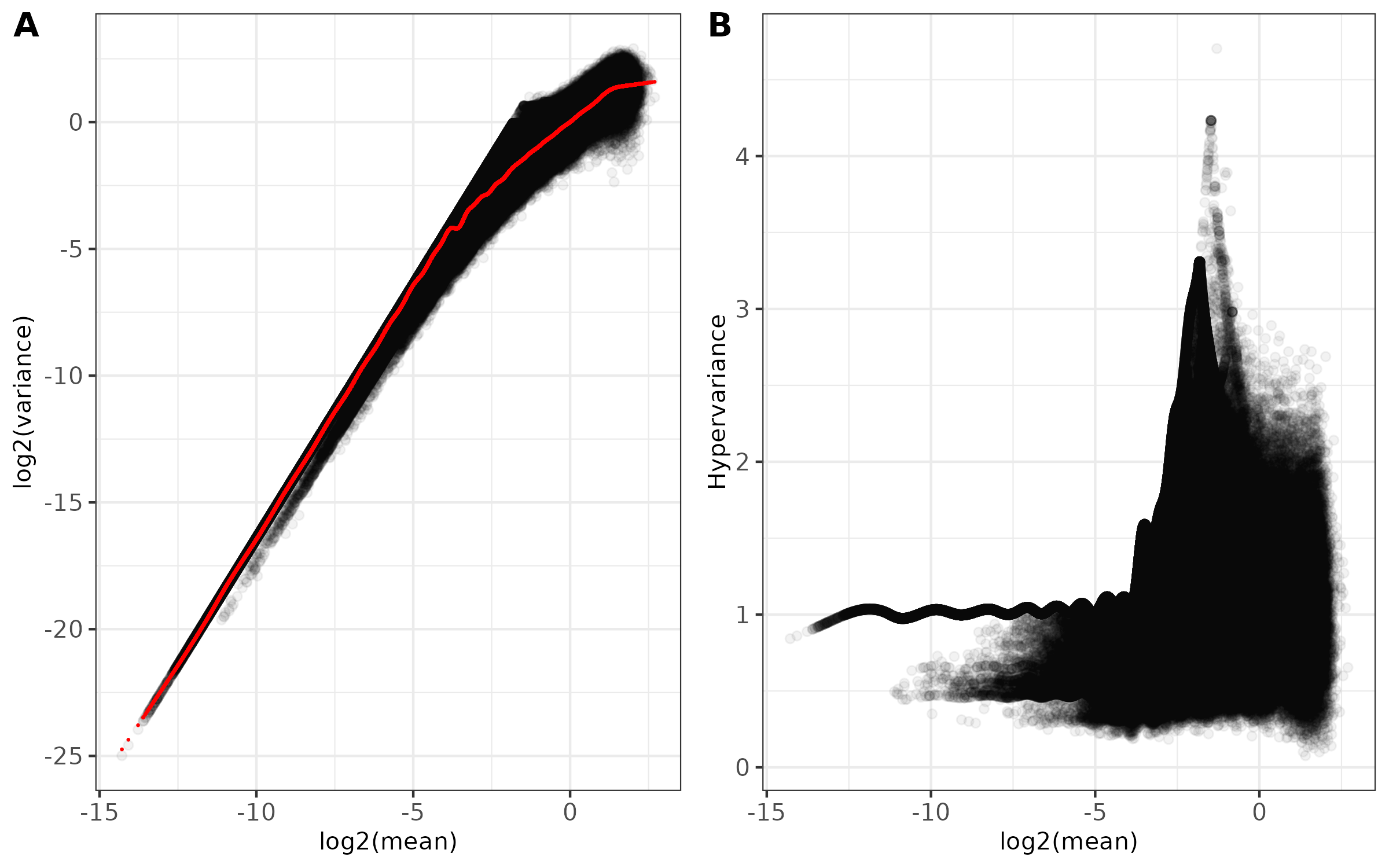

  2. Main diagnostic plots - <input_name>_mean_variance.png (if plot = TRUE)
    • Combined two-panel figure showing:
      • Panel A: Log2(mean) vs Log2(variance) with fitted trend line in red
      • Panel B: Log2(mean) vs Hypervariance
    • Points shown with transparency to visualize density
    • Theme: black and white with customizable font size
    • Saved as PNG format

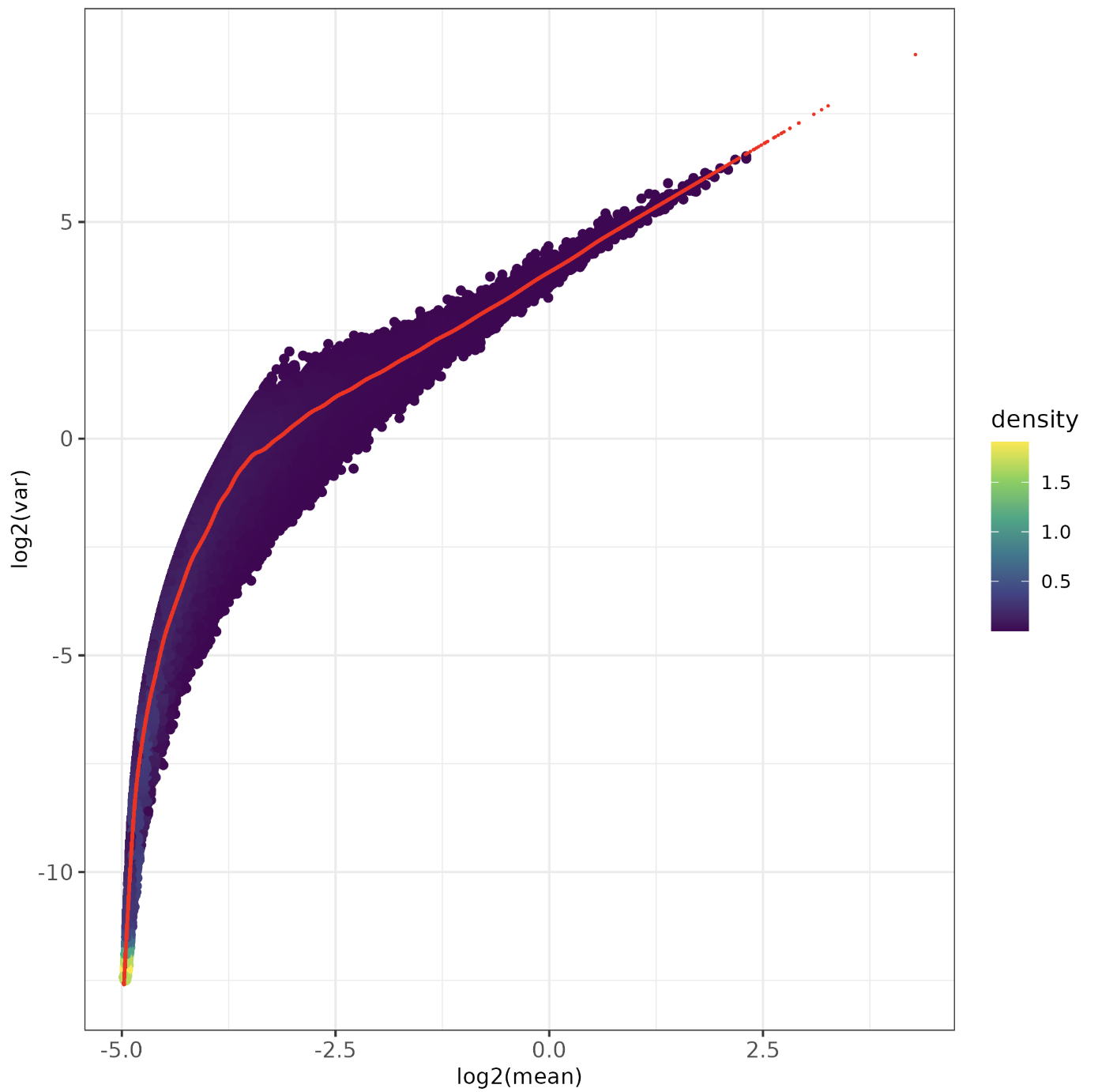

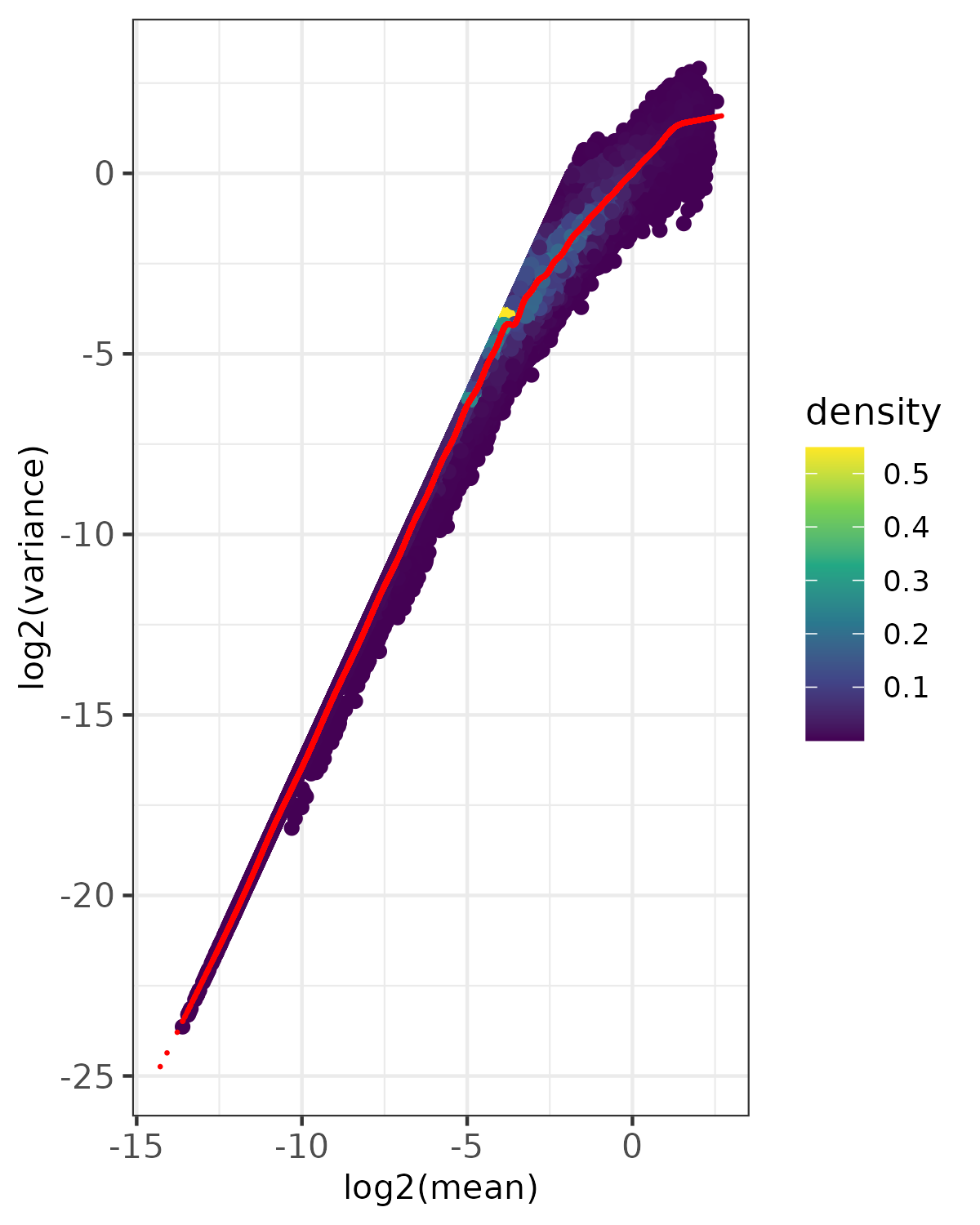

  3. Density plot - <input_name>_fit_density.png (if plot = TRUE)
    • Point density visualization of mean-variance relationship
    • Uses viridis color scale to show point density
    • Red points show expected variance from fitted model
    • Based on randomly sampled subset of data (controlled by nrow_sample_per and seed)
    • Useful for visualizing patterns in large datasets
    • Saved as PNG format

Example Usage

library(multiEpiCore)
# Test Data
trans_path <- "bicluster/Count_Matrix_merged_transformed.feather"
out_dir <- "bicluster"
mav_screen(transformed_cm_path = trans_path, out_dir = out_dir, plot=TRUE)

3B. Select top-ranked regions based on hypervariance values

The filter_hvr() function identifies the most informative genomic regions by combining hypervariance-based selection with stratified sampling across expression levels.

What this function does:

  • (Stratified region selection) Divides the log2(mean) expression range into equal-sized bins to ensure balanced representation across low, medium, and high expression levels.

  • (Hypervariance filtering) Selects top hypervariant regions from each bin, prioritizing regions with biological variability (hypervariance > 1 indicates overdispersion).

  • (Expression threshold) Applies a percentile-based cutoff to retain only highly expressed regions, removing lowly expressed regions that may be noisy.

  • (Count matrix extraction) Retrieves corresponding count data for selected informative regions from the full transformed count matrix.

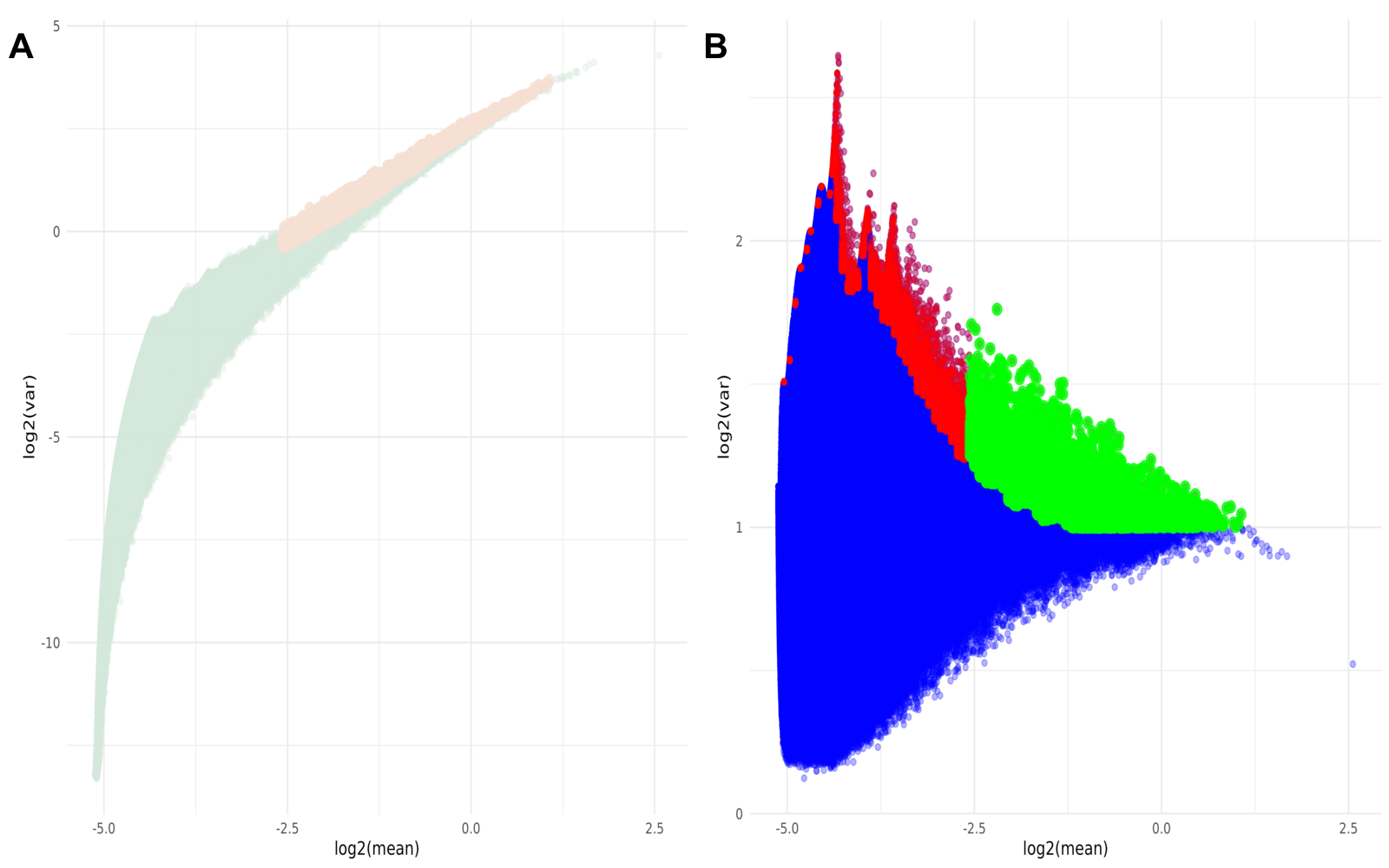

  • (Quality control visualization) Generates optional diagnostic plots showing:

    • Mean-variance relationship with selected regions highlighted
    • Hypervariance distribution across expression levels with selection boundaries
    • Visual confirmation of balanced sampling strategy

  • (Efficient processing) Uses vectorized operations and selective column loading for fast processing of large genomic datasets.

Parameters

Parameter Type Default Description Example
transformed_cm_path character — Path to the transformed count matrix file in .feather format. The file must contain a pos column as the region identifier. transformed_cm_path = “Count_Matrix_transformed.feather”
mav_stats_path character — Path to the mean–variance statistics file in .feather format generated by the upstream MAV screening analysis. mav_stats_path = “Count_Matrix_mav_screen.feather”
out_dir character “./” Output directory path used to save filtered results and optional diagnostic plots. out_dir = “./informative_results”
n_bins integer 100 Number of bins used to partition the log2(mean) range for stratified sampling, ensuring balanced representation across expression levels. n_bins = 50
keep_percent numeric 0.01 Fraction of total regions to retain (range: 0–1). Selected regions are distributed equally across all bins. keep_percent = 0.05
log2mean_quantile_thres numeric 0.99 Quantile threshold (range: 0–1) applied to log2(mean) expression. Only regions above this threshold are retained in the final selection. log2mean_quantile_thres = 0.95
plot logical FALSE Whether to generate diagnostic scatter plots visualizing the region selection process. plot = TRUE

  • Input file requirements:

    • mav_stats_path: Must be the output .feather file from mav_screen() containing columns: pos, log2_mean, log2_var, and hypervar. The function will automatically select only these required columns during loading for memory efficiency.

    • transformed_cm_path: Must be a pre-processed count matrix in .feather format. This should be the same normalized matrix used as input to mav_screen().

  • Region filtering behavior:

    • Regions with hypervar ≤ 1 are automatically excluded as they represent regions with expected or reduced variance (not informative for downstream analysis)
    • The stratified binning ensures balanced selection across expression levels, preventing bias toward highly expressed regions
    • The final log2mean_quantile_thres threshold removes lowly expressed regions that may be dominated by technical noise

  • Parameter tuning recommendations: If your analysis yields too few selected regions, this typically occurs when you’re analyzing a targeted genomic subset (e.g., promoter regions, CpG islands, specific gene loci) rather than genome-wide bins. The combination of default keep_percent = 0.01 (1%) and log2mean_quantile_thres = 0.99 (99th percentile) is too stringen.

    Scenario keep_percent log2mean_quantile_thres Expected output
    Genome-wide bins (default) 0.01 (1%) 0.99 (99th) ~1,000-5,000 regions
    Targeted regions (promoters, peaks) 0.05-0.10 (5-10%) 0.90-0.95 (90-95th) ~2,000-10,000 regions
    Very sparse data 0.10-0.20 (10-20%) 0.85-0.90 (85-90th) ~5,000-20,000 regions
    Large datasets (>100K input regions) Reduce n_bins to 50 Keep defaults Faster computation

Output Files

The function generates the following output files in the specified out_dir (default: “./”):

  1. Filtered Count Matrix - <input_name>_filtered_regions.feather
    • Feather format file containing count data for filtered regions
    • First column “pos” contains region identifiers
    • Subsequent columns contain count values for each sample
    • Only includes regions passing all selection criteria:
      • Hypervariance > 1 (overdispersed)
      • Top hypervariant features within each log2(mean) bin
      • log2(mean) above the specified quantile threshold
    • Dimensions: n_selected_regions × (n_samples + 1)
pos H3K36me3-H3K36me3 H3K36me3-H3K4me1 H3K27ac-H3K36me3 H3K36me3-H3K9me2
chr1_9601_10400 0.03135214 0.02224862 0.03659935 0.03001337
chr1_10401_11200 0.02891244 0.01988311 0.03451229 0.02833411
chr1_11201_12000 0.02750192 0.01844290 0.03329854 0.02701144
chr1_12001_12800 0.02933155 0.02015533 0.03510177 0.02985421
chr1_12801_13600 0.02684492 0.01791241 0.03166388 0.02622109
chr1_13601_14400 0.02599817 0.01762288 0.03088455 0.02548933
chr1_14401_15200 0.02744561 0.01819877 0.03255291 0.02680714
chr1_15201_16000 0.02819945 0.01888922 0.03394107 0.02790365
  1. Diagnostic Plots - <input_name>_filtered_regions.png (if plot = TRUE)

This combined figure contains two complementary visualizations of the selection process:

  • Panel A: Mean-Variance Relationship
    • Scatter plot of log2(mean) vs log2(variance)
    • Shows how selected regions relate to overall mean-variance distribution
    • Highlights selected regions:
      • Light Green points: All regions
      • Light Orange points: Final selected highly-variable regions
  • Panel B: Hypervariance vs Expression
    • Scatter plot of log2(mean) vs hypervariance
    • Visualizes the selection process across expression levels
    • Three layers of points:
      • Blue points: All regions from hypervar summary
      • Red points: Regions selected from binned filtering
      • Green points: Final selected highly-variable regions after quantile filtering

Example Usage

library(multiEpiCore)

# Test Data
trans_path <- "./count_matrix/Count_Matrix_merged_transformed.feather"
mav_path <- "bicluster/Count_Matrix_merged_transformed_mav_screen.feather"
out_dir <- "bicluster"
informative_regions(transformed_cm_pat = trans_path, mav_stats_path = mav_path, out_dir = out_dir, plot=TRUE)

4. Combinatory Landscape of Co-localized CRF Pairs

4A. Automated Clustering and Heatmap Generation

The biclustering() function performs bidirectional k-means clustering on genomic count matrices and generates cluster assignment files along with publication-ready heatmap visualizations.

What this function does:

  • (Consensus k-means clustering) Applies k-means clustering independently to rows (genomic regions) and columns (CRF pairs). For robustness, consensus clustering aggregates results from multiple k-means runs (controlled by row_repeats and col_repeats in the underlying algorithm) to identify stable cluster assignments.

  • (Hierarchical cluster ordering) After initial k-means assignment, clusters are reordered hierarchically to optimize visual interpretation in heatmaps. For each dimension (rows/columns), cluster centroids (mean profiles) are calculated and hierarchically clustered using specified distance metrics and linkage methods. The resulting dendrogram is reordered by centroid weights to place similar clusters adjacent to each other.

  • (Within-cluster feature ordering) Within each cluster, individual features are reordered using hierarchical clustering to reveal internal structure and gradual transitions between expression patterns. This two-level organization (between-cluster + within-cluster) ensures both global pattern recognition and local detail preservation.

  • (Integrated heatmap generation) Automatically creates publication-ready heatmaps with the clustered and ordered matrix, using the generated cluster assignment files to add annotation tracks. Heatmap aesthetics (color ranges, font sizes, column name display) are fully customizable.

Parameters

Parameter Type Default Description Example
cm_path character — Path to the count matrix file in .feather format. The file must contain a pos column, where rows represent genomic positions and columns represent samples. cm_path = “normalized_counts.feather”
row_km integer — Number of k-means clusters applied to rows (genomic regions). row_km = 15
col_km integer — Number of k-means clusters applied to columns (CFR pairs). col_km = 16
out_dir character — Output directory used to save cluster assignment files and heatmap visualizations. out_dir = “./clustering_results”
seed integer 123 Random seed used to ensure reproducible k-means clustering results. seed = 42
plot logical TRUE Whether to generate and save the heatmap visualization. plot = FALSE
show_column_names logical FALSE Whether to display column names at the bottom of the heatmap. show_column_names = TRUE
lower_range numeric NULL Lower bound of the heatmap color scale. If NULL, the minimum value from the data is used. lower_range = 0
upper_range numeric NULL Upper bound of the heatmap color scale. If NULL, the maximum value from the data is used. upper_range = 10
row_title_fontsize numeric NULL Font size for row cluster titles (e.g. A, B, C). row_title_fontsize = 40
col_title_fontsize numeric NULL Font size for column cluster titles (e.g. 1, 2, 3). col_title_fontsize = 22
legend_title_fontsize numeric NULL Font size used for the heatmap legend title. legend_title_fontsize = 40
legend_label_fontsize numeric NULL Font size used for legend tick labels. legend_label_fontsize = 30

  • Input requirements:

    • Count matrix must be in .feather format
    • First column must be named “pos” containing region identifiers
    • Matrix must contain numeric values only

  • Reproducibility: Always set seed parameter for reproducible results, as k-means involves random initialization.

  • Color scale interpretation:

    • Default: Auto-scales to data range
    • Custom: Use lower_range and upper_range for consistent scales across analyses
    • Blue = Low signal, White = Medium, Red = High signal

Output Files

The function generates the following output files in the specified out_dir:

  1. Row cluster assignments - row_table.tsv
    • Tab-separated file with row cluster assignments
    • Two columns:
      • region: Genomic region identifier (e.g., “chr1_1000_2000”)
      • cluster: Cluster label as letter (A, B, C, D, etc.)
    • Sorted by cluster label for easy inspection
    • Rows within each cluster are ordered by hierarchical clustering
    • Used for annotating genomic regions by cluster membership
      region cluster
      <chr> <chr>
      1 chr16_89995201_89996000 A
      2 chr3_10401_11200 A
      3 chrX_156029601_156030400 A
      4 chr21_8234401_8235200 A
      5 chr7_64849601_64850400 A
      6 chr2_85993601_85994400 A
      7 chr7_106568801_106569600 B
      8 chr19_4374401_4375200 B
      9 chr10_72320801_72321600 B
      10 chr1_30768801_30769600 B
      11 chr1_28259201_28260000 C
      12 chr16_1379201_1380000 C
      13 chr6_43771201_43772000 C
      14 chr16_28824001_28824800 C
      15 chr11_65497601_65498400 C
      16 chr6_31958401_31959200 D
      17 chr18_3448001_3448800 D
      18 chr19_1044801_1045600 D
      19 chr17_75046401_75047200 D
      20 chr2_85602401_85603200 D
  2. Column cluster assignments - col_table.tsv
    • Tab-separated file with column (sample) cluster assignments
    • Two columns:
      • pair: CFR pair identifier (e.g., “YY1-cJun”)
      • cluster: Cluster label as number (1, 2, 3, etc.)
    • Sorted by cluster label
    • Columns within each cluster are ordered by hierarchical clustering
    • Used for grouping samples by similarity
      pair cluster
      <chr> <dbl>
      1 H3K9me3-H3K9me3 1
      2 H3K27ac-H3K4me3 2
      3 H3K4me1-H3K9me3 2
      4 H3K9me2-H3K9me3 2
      5 H3K27ac-H3K4me1 2
      6 H3K27ac-H3K27me3 2
      7 H3K27ac-H3K9me3 2
      8 H3K27ac-H3K27ac 2
      9 H3K4me1-H3K4me3 3
      10 H3K27me3-H3K4me3 3
      11 H3K4me3-H3K9me3 3
      12 H3K4me3-H3K4me3 4

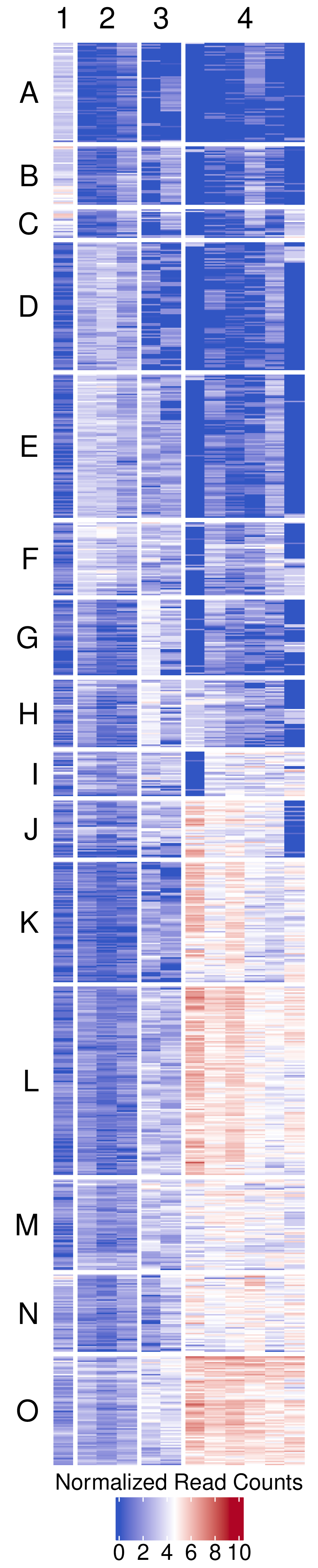

  3. Clustered heatmap - figures/biclustering_heatmap.pdf
    • Publication-ready heatmap in PDF format
    • Features:
      • Rows organized by k-means clusters (labeled A, B, C, etc.)
      • Columns organized by k-means clusters (labeled 1, 2, 3, etc.)
      • Color scale: Blue (low) → White (middle) → Red (high)
      • Horizontal legend positioned at bottom
      • White gaps between clusters for visual separation (3mm)
      • Customizable font sizes for titles and labels
      • Transparent background for publication flexibility
    • Dimensions automatically calculated based on matrix size (5mm per feature/sample)

Example Usage

library(multiEpiCore)

# General Usage
cm_path <- "Count_Matrix_merged_transformed_mav_screen_filtered_regions.feather"
out_dir <- "."
biclustering(cm_path = cm_path, row_km = 15, col_km = 16, out_dir = out_dir)

# Test Data
cm_path <- "bicluster/Count_Matrix_merged_transformed_filtered_regions.feather"
out_dir <- "bicluster"
biclustering(cm_path = cm_path, row_km = 15, col_km = 4, out_dir = out_dir)

4B. (Optional) Add Non-Informative Regions Back to Clusters

The add_regions_back_to_cluster() function assigns cluster labels to genomic regions that were excluded from the highly variable set by correlating them with existing cluster signatures.

What this function does:

This function recovers regions that were filtered out during highly-variability selection and assigns them to the row clusters generated by the biclustering() function.

  • (Filter non-highly-variable regions) Starting with the original count matrix, the function identifies non-highly-variable regions (those excluded from clustering) and filters them based on a minimum non-zero count threshold at the raw count level. Specifically, regions must have non-zero counts in more than a specified number of samples (controlled by cutoff_non_zero) to be considered for cluster assignment.

  • (Correlation-based cluster assignment) For each row cluster from biclustering, the function calculates a signature profile by averaging the transformed expression values of highly variable regions assigned to that cluster. Non-highly-variable regions are then correlated against these cluster signatures using their transformed values. Regions with maximum correlation values exceeding the specified quantile threshold (controlled by quantile_threshold) are assigned to their best-matching cluster.

  • (Priority-based label assignment) The final output combines all regions into a priority-based classification:

    1. Original cluster assignments from biclustering (highest priority)
    2. Correlation-based assignments for high-correlation regions
    3. CRF_specific for low-correlation candidates that passed the non-zero filter
    4. Background for all remaining regions with non-zero counts

Parameters

Parameter Type Default Description Example
orig_cm_path character — Path to a .feather file containing the original count matrix generated by build_count_matrix. The matrix includes all regions in untransformed form, with pos as the first column. orig_cm_path = “count_matrix.feather”
transformed_cm_path character — Path to a .feather file containing transformed count data (e.g. log-normalized or scaled) used for correlation analysis. transformed_cm_path = “qnorm_counts.feather”
filtered_cm_path character — Path to a .feather file containing informative or significant regions used in the original clustering analysis. filtered_cm_path = “informative_regions.feather”
row_cluster_path character — Path to a TSV file defining cluster assignments for informative regions. The file must include region and cluster columns. row_cluster_path = “row_table.tsv”
out_dir character — Output directory used to save result tables and optional diagnostic plots. out_dir = “./results”
cutoff_non_zero integer 10 Minimum number of non-zero samples required per region. Regions with more than this number of non-zero values are retained. cutoff_non_zero = 15
quantile_threshold numeric 0.75 Quantile threshold (range: 0–1) for filtering high-correlation regions. Only regions above this quantile are assigned cluster labels. quantile_threshold = 0.80
plot logical FALSE Whether to generate and save a histogram of the correlation distribution. plot = TRUE

  • Input file requirements:

    • All feather files must have ‘pos’ column as first column
    • cluster_path TSV must have ‘region’ and ‘cluster’ columns

  • Non-zero filtering: The cutoff_non_zero = 10 means regions must have MORE than 10 non-zero samples (not equal to 10).

  • Quantile threshold interpretation: quantile_threshold = 0.75 means only regions with correlation in the top 25% receive cluster assignments.

Output Files

The function generates the following output files in out_dir:

  1. Complete region-cluster table - row_table_all.tsv
    • Comprehensive table containing all genomic regions with assigned labels
    • Two columns:
      • region: Genomic region identifier (chromosome coordinates)
      • cluster: Assigned cluster label or category
    • Label priority hierarchy (highest to lowest):
      • Original cluster assignments: From row_cluster_path (informative region clusters)
      • Correlation-based assignments: High-correlation regions matched to cluster signatures
      • CRF_specific: Regions passing non-zero filter but below correlation threshold
      • Background: All other regions with non-zero counts
    • Tab-delimited format (.tsv)
    • Includes all non-zero regions from the genome
    region cluster
    chr1_9601_10400 J
    chr1_10401_11200 CRF_specific
    chr1_12801_13600 Background
    chr1_14401_15200 Background
    chr1_15201_16000 Background
    chr1_16001_16800 Background
  2. Filtered region-cluster table - row_table_clean.tsv
    • Contains only cluster-assigned regions (excludes “Background” and “CRF_specific” labels)
    • Same two-column format as complete table
    • Tab-delimited format (.tsv)
    • Useful for downstream analyses focusing on clustered regions only

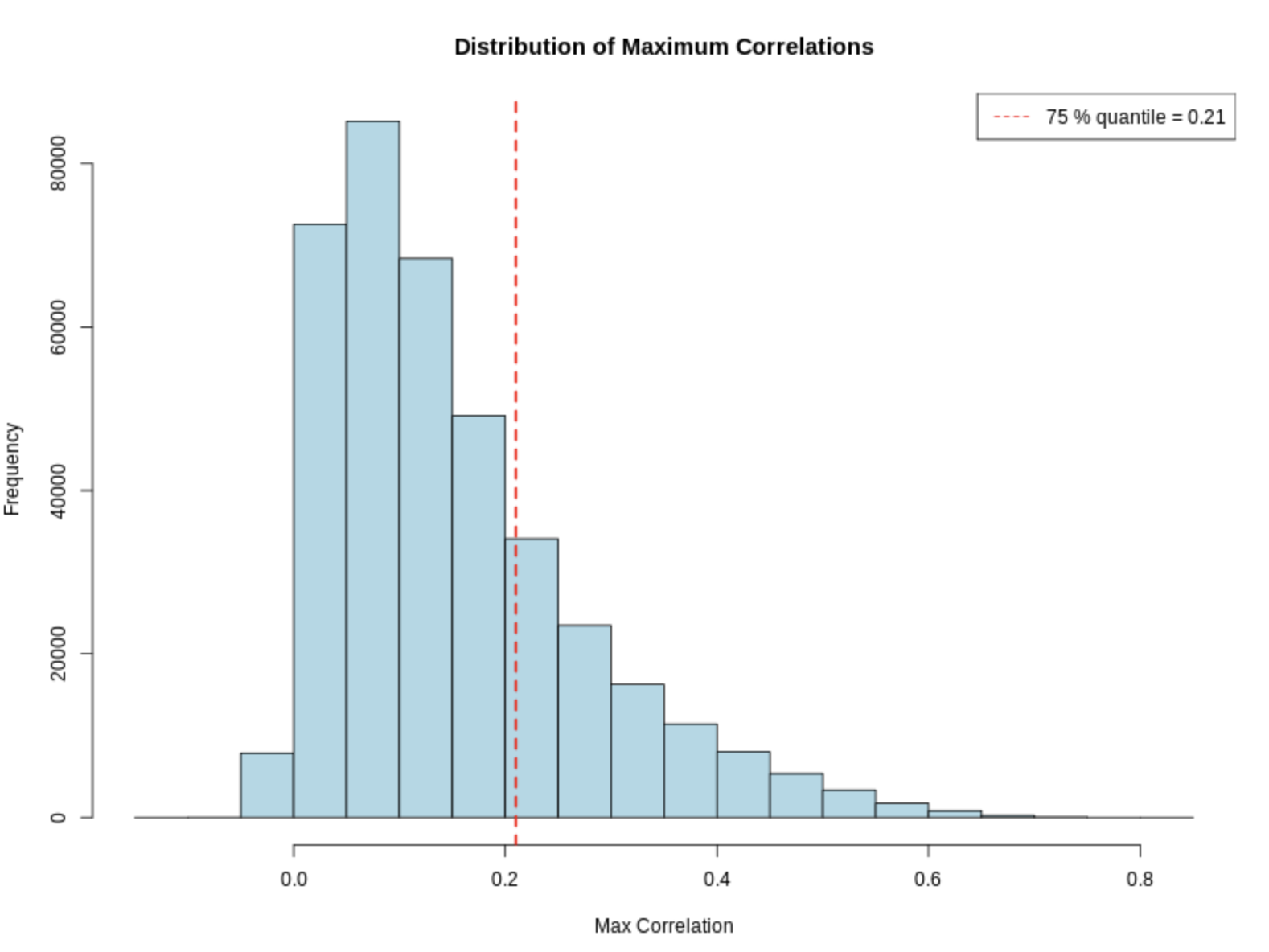

  3. Correlation distribution histogram - correlation_histogram.png (if plot = TRUE)
    • PNG format visualization showing distribution of maximum correlation values
    • X-axis: Maximum correlation between regions and cluster signatures
    • Y-axis: Frequency of regions
    • Red dashed line: Quantile threshold for filtering
    • Legend: Shows quantile threshold value
    • Resolution: 800 × 600 pixels
    • Helps visualize correlation quality and threshold selection
    • Color scheme: Light blue bars with black borders

Example Usage

library(multiEpiCore)

# Test Data
orig_cm_path <- "count_matrix/Count_Matrix_merged.feather"
transformed_cm_path <- "bicluster/Count_Matrix_merged_transformed.feather"
filtered_cm_path <- "bicluster/Count_Matrix_merged_transformed_filtered_regions.feather"
row_cluster_path <- "bicluster/row_table.tsv"
out_dir <- "add_regions_results"

add_regions_back_to_cluster(
  orig_cm_path = orig_cm_path,
  transformed_cm_path = transformed_cm_path,
  filtered_cm_path = filtered_cm_path,
  row_cluster_path = row_cluster_path,
  out_dir = out_dir,
  cutoff_non_zero = 10,
  quantile_threshold = 0.75,
  plot = TRUE
)

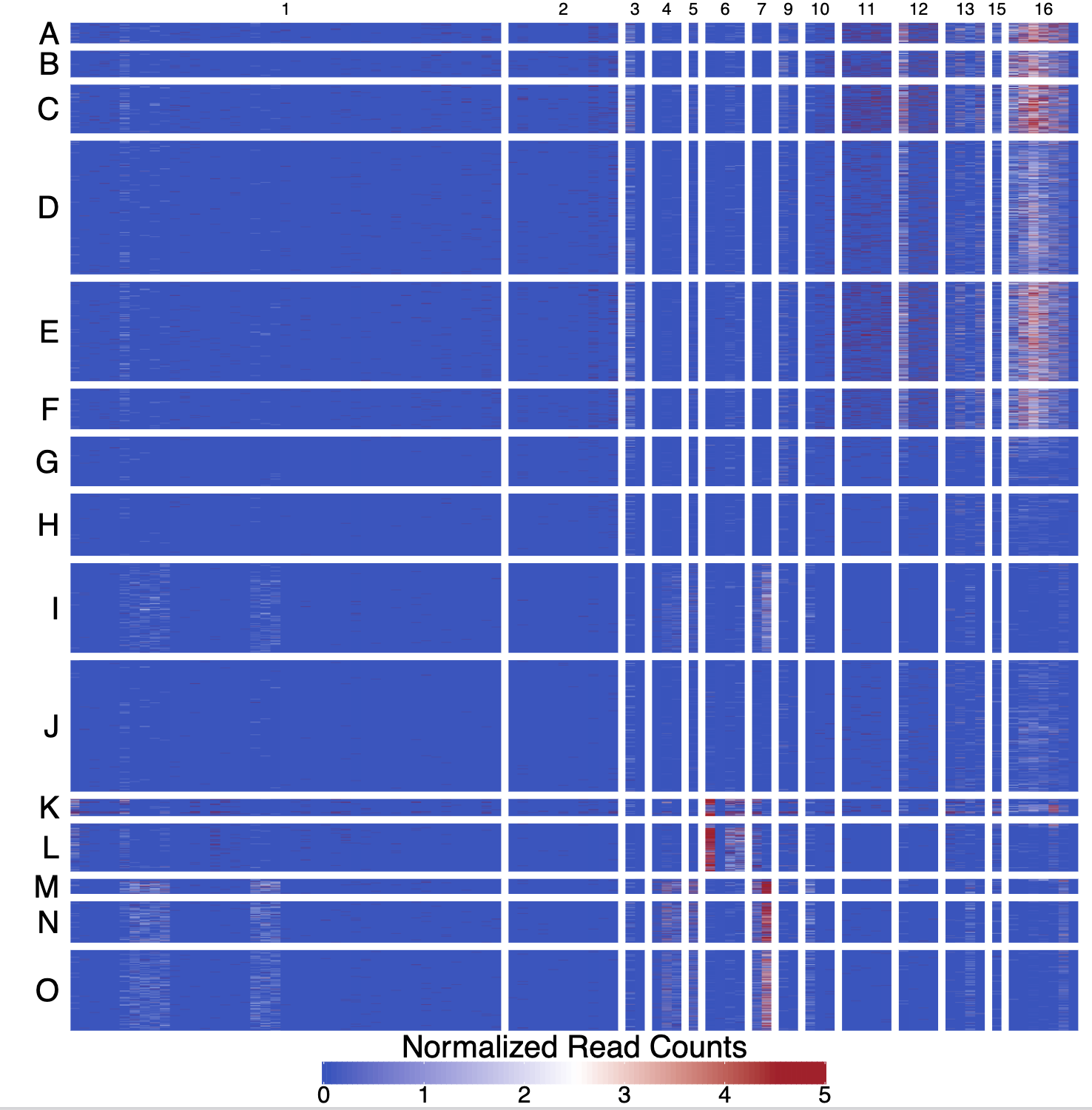

4C. (Optional) Apply Pre-Computed Clusters to Generate Heatmaps

After adding non-highly-variable regions back to clusters, the biclustering_heatmap() function can be used to generate heatmaps using the expanded cluster assignments (typically from row_table_clean.tsv). This function creates publication-ready visualizations without re-running the clustering algorithm. Note that this function is also called internally by the biclustering() function to generate the initial heatmap after performing bidirectional k-means clustering.

What this function does:

  • (Load and validate cluster assignments) Reads row and column cluster assignment files and validates that regions in the cluster files match those present in the input count matrix. Typically uses the clean cluster assignments (row_table_clean.tsv) that exclude “Background” and “CRF_specific” labels.

  • (Order matrix by clusters) Reorders the count matrix rows and columns according to cluster assignments, ensuring regions within the same cluster are grouped together for visualization.

  • (Configure color scaling) Sets up a diverging color scheme (blue → white → red) with customizable value ranges. If ranges are not specified, automatically determines appropriate bounds from the data.

  • (Calculate optimal dimensions) Automatically computes cell sizes and heatmap dimensions based on the number of clusters and their sizes, ensuring cluster labels are readable and properly positioned. Adjusts legend font sizes to fit within the available space.

  • (Generate publication-ready heatmap) Creates a PDF heatmap with:

    • Rows split by cluster assignments (labeled A, B, C, …)
    • Columns split by cluster assignments (labeled 1, 2, 3, …)
    • White gaps between clusters for visual separation
    • Horizontal legend at bottom showing color scale
    • Transparent background for publication flexibility
    • High-resolution rasterized cells for efficient rendering

Parameters

Parameter Type Default Description Example
mat matrix — Count matrix with genomic regions as rows and samples as columns. The matrix must contain row names (region IDs) and column names (sample IDs). mat = as.matrix(count_data)
row_cluster_file_path character — Path to a TSV file defining row cluster assignments. The file must contain region and cluster columns. Typically uses row_table_clean.tsv generated by add_regions_back_to_cluster(). row_cluster_file_path = “row_table_clean.tsv”
col_cluster_file_path character — Path to a TSV file defining column cluster assignments. The file must contain pair and cluster columns. col_cluster_file_path = “col_table.tsv”
out_dir character “./” Output directory used to save the generated heatmap. out_dir = “./heatmaps”
show_column_names logical FALSE Whether to display sample names along the column axis of the heatmap. show_column_names = TRUE
lower_range numeric NULL Lower bound for the heatmap color scale. If NULL, the minimum value in the matrix is used. lower_range = 0
upper_range numeric NULL Upper bound for the heatmap color scale. If NULL, the maximum value in the matrix is used. upper_range = 4.5
row_title_fontsize numeric NULL Font size for row cluster titles (e.g. A, B, C). If NULL, a default size of 20 is used. row_title_fontsize = 25
col_title_fontsize numeric NULL Font size for column cluster titles (e.g. 1, 2, 3). If NULL, a default size of 20 is used. col_title_fontsize = 25
legend_title_fontsize numeric NULL Font size for the legend title. If NULL, a default size of 15 is used and auto-adjusted to fit. legend_title_fontsize = 18
legend_label_fontsize numeric NULL Font size for legend tick labels. If NULL, a default size of 15 is used. legend_label_fontsize = 15

Note: The input mat is typically the complete transformed count matrix (e.g., from transformed_cm_path). The function will automatically subset the matrix to include only regions present in both the matrix and the cluster assignment files. Regions in the matrix but not in cluster files will be excluded from visualization; regions in cluster files but not in the matrix will be skipped.

Output Files

The function generates the following output files in the specified out_dir:

  1. Clustered heatmap(s) - biclustering_heatmap.pdf
    • Publication-ready heatmap(s) in PDF format
    • One PDF file per input count matrix
    • Features:
      • Rows ordered and split by cluster assignments from row_cluster_file_path
      • Columns ordered and split by cluster assignments from col_cluster_file_path
      • Row clusters labeled with letters (A, B, C, etc.)
      • Column clusters labeled with numbers (1, 2, 3, etc.)
      • Color scale: Blue (#3155C3) → White → Red (#AF0525)
      • Horizontal legend positioned at bottom with title “Normalized Read Counts”
      • White gaps between clusters (3mm) for visual separation
      • Transparent background for publication flexibility
      • No dendrograms (unless show_dend_boolean = TRUE shows column names)
    • Dimensions automatically calculated based on matrix size (5mm per feature/sample)

Example Usage

library(multiEpiCore)

# Add non-highly-variable regions back to clusters
orig_cm_path <- "./count_matrix.feather"
transformed_cm_path <- "./count_matrix_log2_qnorm.feather"
filtered_cm_path <- "./highly_variable_regions.feather"
row_cluster_path <- "./biclustering_results/row_table.tsv"
out_dir <- "./add_regions_results"

add_regions_back_to_cluster(
  orig_cm_path = orig_cm_path,
  transformed_cm_path = transformed_cm_path,
  filtered_cm_path = filtered_cm_path,
  row_cluster_path = row_cluster_path,
  out_dir = out_dir,
  cutoff_non_zero = 10,
  quantile_threshold = 0.75,
  plot = TRUE
)

# Load the transformed count matrix
library(arrow)
library(tibble)
mat <- as.matrix(column_to_rownames(read_feather(transformed_cm_path), var = "pos"))

# Generate heatmap with expanded cluster assignments
row_table_clean_path <- file.path(out_dir, "row_table_clean.tsv")
col_table_path <- "./biclustering_results/col_table.tsv"

biclustering_heatmap(
  mat = mat,
  row_cluster_file_path = row_table_clean_path,
  col_cluster_file_path = col_table_path,
  out_dir = out_dir
)

5. (Optional) Cluster-based Annotation

5A. Annotate and Plot Regulatory Element Composition for Clustered Regions

The biclustering_genomic_distribution() function performs post-clustering genomic annotation analysis by quantifying the regulatory element composition of clustered genomic regions. Clustered regions are overlapped with multiple external annotation resources, including cCREs, ChromHMM chromatin states, and repeat elements, followed by comparative visualization across clusters.

Parameters

Parameter Type Default Description Example
row_cluster_file_path character — Path to a TSV file containing cluster assignments. The file must include region (genomic coordinates formatted as chr_start_end) and cluster (cluster ID) columns. Typically uses row_table_clean.tsv generated from biclustering output. “./row_table_clean.tsv”
out_dir character “./” Output directory for annotation results. Subdirectories are automatically created for each annotation type. “./distribution_annotation”
distributions character vector c(“genic”, “ccre”) Annotation types to perform. Supported options include “genic” (gene features), “ccre” (cCRE elements), “chromhmm” (chromatin states), and “repeat” (repeat elements). Any combination of these options can be specified. c(“genic”, “ccre”, “repeat”)
ref_genome character “hg38” Reference genome version. Supported options are “hg38” (Human GRCh38) and “mm10” (Mouse GRCm38). “mm10”
ref_source character “knownGene” Gene annotation source used for genic and cCRE annotation. Supported options are “knownGene” (UCSC) and “GENCODE”. This parameter is only used when “genic” is included in distributions. “GENCODE”
mode character “nearest” Annotation assignment method. “nearest” assigns each region to the closest feature, while “weighted” assigns features proportionally based on overlap length. “weighted”
plot logical TRUE Whether to generate stacked barplot visualizations for each annotation type. FALSE
  • Annotation types available:
    • "genic": Gene structural features - Promoter, 5’ UTR, Exon, Intron, 3’ UTR
    • "ccre": Candidate cis-Regulatory Elements - dELS, pELS, PLS, CA-H3K4me3, CA-CTCF, CA-TF, TF, CA
    • "chromhmm": Chromatin states - Acet, EnhWk, EnhA, PromF, TSS, TxWk, TxEx, Tx, OpenC, TxEnh, ReprPCopenC, BivProm, ZNF, ReprPC, HET, GapArtf, Quies
    • "repeat": Repetitive elements - SINE, LINE, LTR, Retroposon, RC, DNA, Satellite, Simple_repeat, Low_complexity, rRNA, tRNA, snRNA, scRNA, srpRNA, RNA, Unknown
    • For detailed description of each annotation category, see the Annotation page
  • Annotation assignment methods:
    • "nearest": Each genomic region is assigned to its closest feature (by distance to feature center)
    • "weighted": Each region is proportionally assigned to overlapping features based on overlap length
    • nearest mode is faster and simpler; weighted mode provides more accurate representation for regions spanning multiple features

Output Files

The function generates the following output files in the specified out_dir:

  1. Composition tables - {genic/ccre/chromhmm/repeat}_distribution.pdf

  • .tsv tables summarizing the percentage composition of various annotations

  • Row: cluster lables

  • Col: annotations states

  • Values represent the proportion (%) of genomic regions assigned to each state within a cluster

  • Genic distribution

    Promoter

    5’ UTR

    Exon

    Intron

    3’ UTR

    other

    A

    7.37327188940092

    0

    2.76497695852535

    13.3640552995392

    0

    76.4976958525346

    B

    59.8802395209581

    11.9760479041916

    8.98203592814371

    16.7664670658683

    1.79640718562874

    0.598802395209581

    C

    54.2253521126761

    11.9718309859155

    13.3802816901408

    14.0845070422535

    0

    6.33802816901408

    D

    8.82352941176471

    0

    10.2941176470588

    54.4117647058823

    2.94117647058824

    23.5294117647059

    E

    43.3823529411765

    10.2941176470588

    10.2941176470588

    27.2058823529412

    1.47058823529412

    7.35294117647059

    ……

    O

    60.427807486631

    10.6951871657754

    13.903743315508

    12.8342245989305

    0

    2.13903743315508

  • cCRE distribution

    dELS

    pELS

    PLS

    CA-H3K4me3

    A

    26.7281105990783

    7.37327188940092

    2.76497695852535

    9.67741935483871

    B

    5.38922155688623

    34.7305389221557

    59.8802395209581

    0

    C

    4.22535211267606

    26.7605633802817

    62.6760563380282

    3.52112676056338

    D

    79.4117647058823

    13.2352941176471

    2.94117647058824

    0

    E

    19.8529411764706

    41.9117647058824

    38.2352941176471

    0

    ……

    O

    4.81283422459893

    28.8770053475936

    66.3101604278075

    0

    CA-CTCF

    CA-TF

    TF

    CA

    other

    A

    0.921658986175115

    0

    4.14746543778802

    1.84331797235023

    46.5437788018433

    B

    0

    0

    0

    0

    0

    C

    0

    0

    1.40845070422535

    0

    1.40845070422535

    D

    0

    0

    2.94117647058824

    0

    1.47058823529412

    E

    0

    0

    0

    0

    0

    ……

    O

    0

    0

    0

    0

    0

  • chromHMM distribution

    Acet

    EnhWk

    EnhA

    PromF

    TSS

    OpenC

    A

    3.2258064516129

    0.921658986175115

    2.76497695852535

    5.06912442396313

    0.921658986175115

    0

    B

    0

    0

    0.598802395209581

    43.7125748502994

    50.8982035928144

    0.598802395209581

    C

    1.40845070422535

    0

    1.40845070422535

    50.7042253521127

    35.9154929577465

    2.11267605633803

    D

    16.1764705882353

    0

    36.7647058823529

    16.1764705882353

    0

    2.94117647058824

    E

    1.47058823529412

    0.735294117647059

    4.41176470588235

    38.2352941176471

    38.2352941176471

    2.20588235294118

    ……

    O

    0.53475935828877

    0

    2.67379679144385

    45.4545454545455

    49.7326203208556

    0

    TxEnh

    BivProm

    TxWk

    TxEx

    Tx

    A

    0.921658986175115

    0.921658986175115

    0

    0

    0

    B

    0

    1.19760479041916

    0

    0

    0

    C

    0.704225352112676

    0

    0

    0

    0

    D

    11.7647058823529

    0

    1.47058823529412

    10.2941176470588

    1.47058823529412

    E

    0.735294117647059

    10.2941176470588

    0

    0

    0

    ……

    O

    0

    1.06951871657754

    0

    0

    0

    ZNF

    ReprPC

    HET

    GapArtf

    Quies

    other

    A

    0.921658986175115

    3.2258064516129

    13.3640552995392

    38.2488479262673

    1.84331797235023

    27.6497695852535

    B

    0

    0

    1.19760479041916

    0

    0

    1.79640718562874

    C

    0

    0

    1.40845070422535

    2.11267605633803

    0

    4.22535211267606

    D

    0

    0

    0

    1.47058823529412

    0

    1.47058823529412

    E

    0

    2.94117647058824

    0.735294117647059

    0

    0

    0

    ……

    O

    0

    0

    0

    0

    0

    0.53475935828877

  • Repeat distribution

    SINE

    LINE

    LTR

    Retroposon

    RC

    DNA

    A

    9.21658986175115

    5.52995391705069

    5.06912442396313

    0.460829493087558

    0

    0

    B

    10.7784431137725

    5.38922155688623

    8.38323353293413

    0

    0

    1.79640718562874

    C

    11.2676056338028

    4.22535211267606

    7.04225352112676

    0

    0

    0

    D

    27.9411764705882

    14.7058823529412

    13.2352941176471

    0

    0

    7.35294117647059

    E

    10.2941176470588

    6.61764705882353

    5.14705882352941

    0

    0

    2.20588235294118

    ……

    O

    8.55614973262032

    4.27807486631016

    1.06951871657754

    0.53475935828877

    0

    1.60427807486631

    Satellite

    Simple_repeat

    Low_complexity

    rRNA

    tRNA

    snRNA

    A

    36.405529953917

    25.3456221198157

    0.921658986175115

    0

    0

    0

    B

    1.19760479041916

    29.3413173652695

    8.98203592814371

    0

    1.19760479041916

    0

    C

    2.11267605633803

    30.2816901408451

    7.04225352112676

    0

    0

    0

    D

    2.94117647058824

    7.35294117647059

    1.47058823529412

    0

    0

    0

    E

    0

    33.8235294117647

    14.7058823529412

    0

    0

    0

    O

    0

    36.3636363636364

    9.62566844919786

    0

    0.53475935828877

    0

    scRNA

    srpRNA

    RNA

    Unknown

    other

    A

    0

    0

    0

    0

    17.0506912442396

    B

    0

    0.598802395209581

    0

    0

    32.3353293413174

    C

    0

    0

    0

    0

    38.0281690140845

    D

    0

    0

    0

    0

    25

    E

    0

    0

    0

    0

    27.2058823529412

    ……

    O

    0

    0

    0

    0

    37.4331550802139

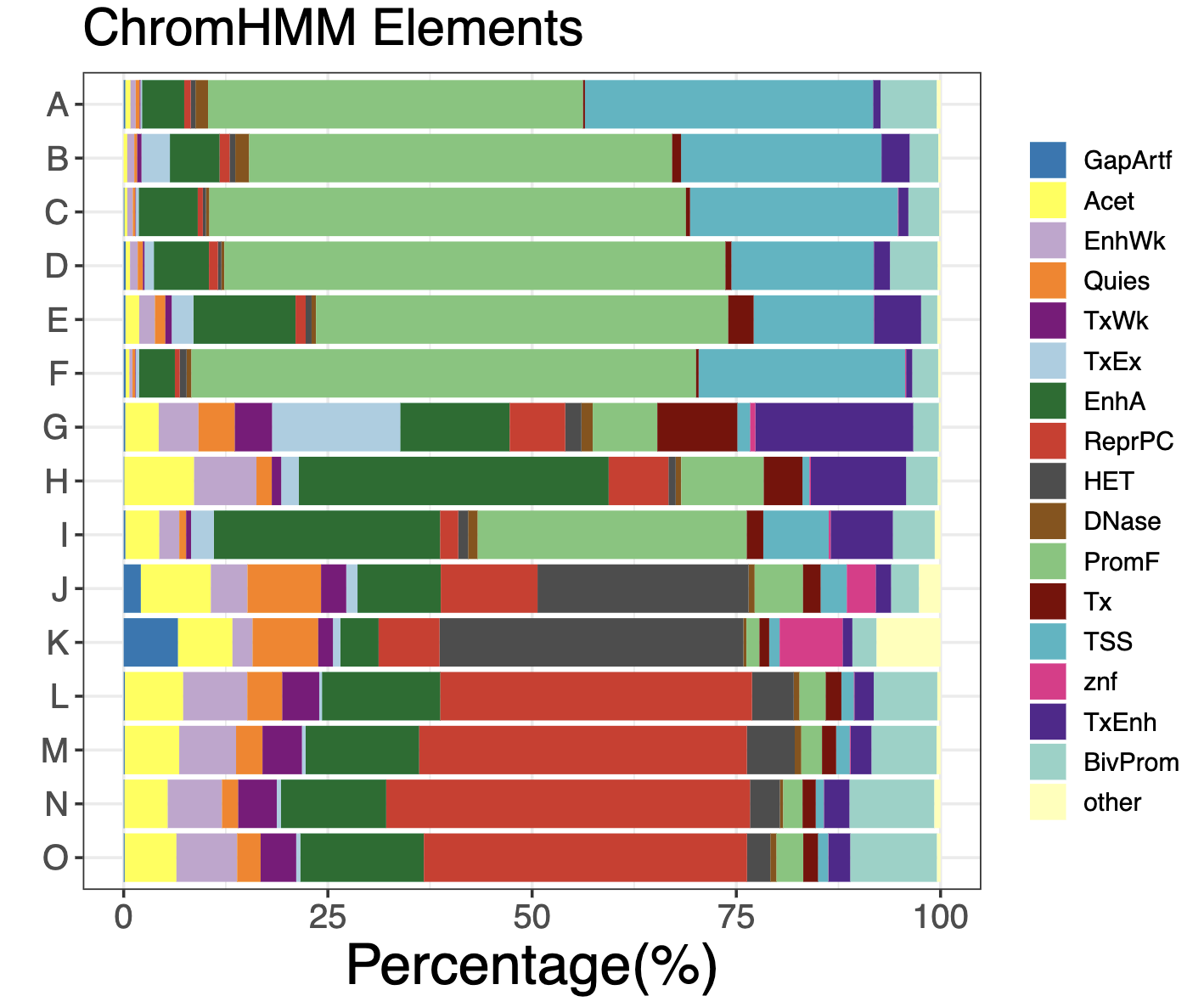

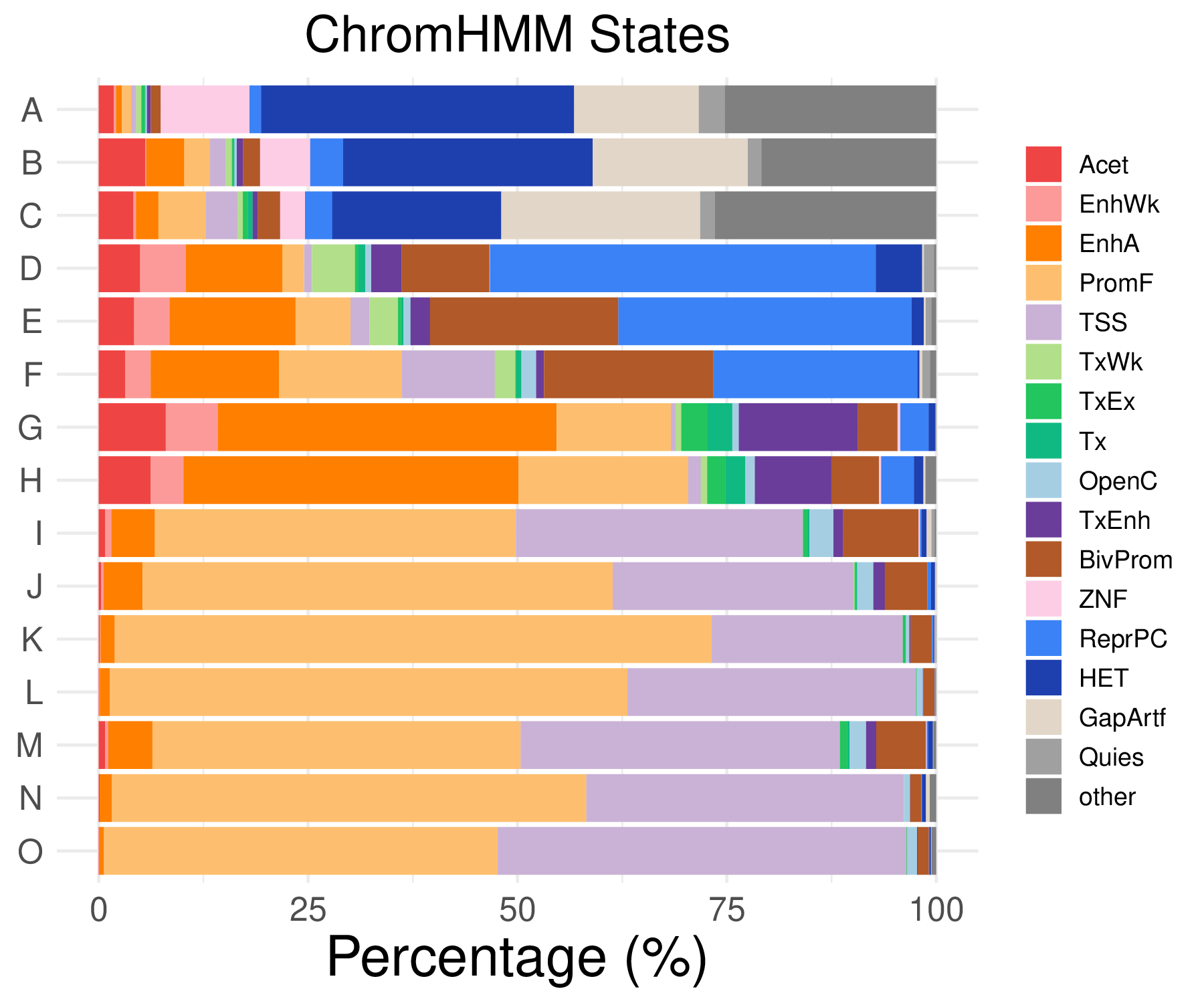

  1. Cmposition bar plot - {genic/ccre/chromhmm/repeat}_distribution.pdf
    • Stacked horizontal bar plot showing ChromHMM chromatin state distribution across clusters
    • X-axis: Percentage (0-100%)
    • Y-axis: Cluster labels (top to bottom)

Example Usage

library(multiEpiCore)
# Test Data
row_cluster_file_path <- "bicluster/row_table.tsv"
out_dir <- "bicluster/genomic_distribution"
annotation_ccre_hmm(row_cluster_file_path = row_cluster_file_path, out_dir = out_dir)

5B. Biclustering TFBS Annotation Pipeline

The biclustering_TFBS_enrichment() function provides a complete, automated workflow for analyzing transcription factor binding site (TFBS) enrichment across multiple clusters of genomic regions. It handles the entire pipeline from control region generation to enrichment testing and visualization.

What this function does:

  • Reads a file containing clustered genomic regions (e.g., from biclustering analysis)

  • Generates matched control regions for each cluster using gene-based matching

  • Performs TFBS enrichment analysis comparing each cluster against controls

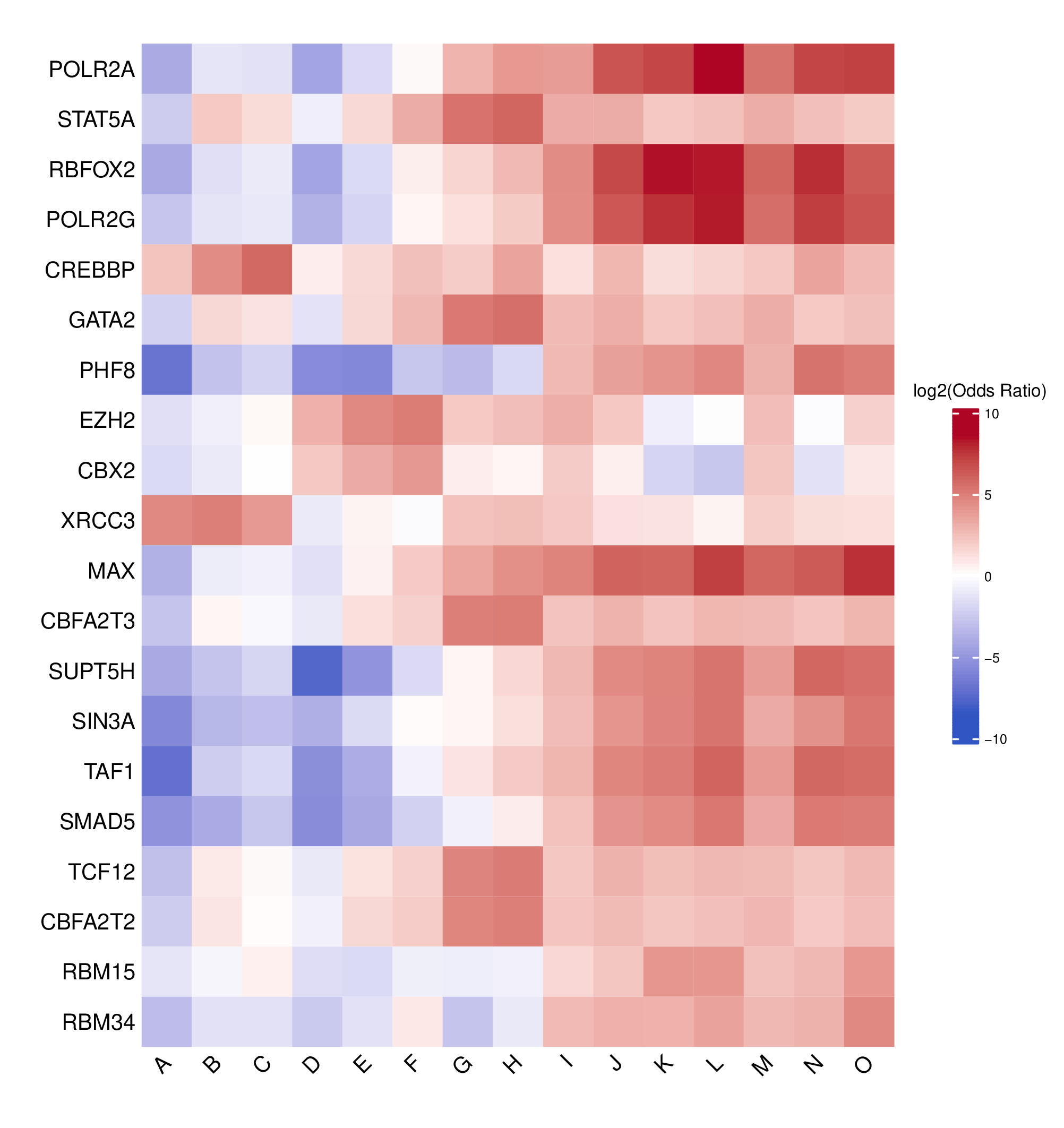

  • Creates heatmap visualizations showing enrichment patterns across clusters

  • Saves all intermediate and final results to organized output files

Parameters

Parameter Type Default Description Example
row_cluster_file_path character — Path to a tab-delimited file containing clustered regions. The file must include columns region (formatted as chr_start_end) and cluster (cluster ID). “bicluster_results.tsv”
out_dir character “./” Output directory where all results will be saved. out_dir = “./TFBS_results/”
ref_genome character “hg38” Reference genome version. Supported options are “hg38”, “hg19”, “mm10”, and “mm39”. ref_genome = “mm10”
ref_source character “knownGene” Gene annotation source used for control region generation. Supported options are “knownGene” (UCSC knownGene) and “GENCODE” (GENCODE gene models). ref_source = “GENCODE”
control_rep integer 1 Multiplier for control region generation, defining the ratio of control regions to target regions. For example, setting control_rep = 2 generates twice as many control regions. control_rep = 3
regions integer 800 Size in base pairs to which all regions are resized, centered on the original region midpoint. regions = 500
plot logical TRUE Whether to generate heatmap visualizations. If set to FALSE, only enrichment analysis is performed. plot = FALSE

Input File Format:

The cluster file must be tab-delimited with at least two columns: - region: Genomic coordinates in format “chr_start_end” (underscore-separated) - cluster: Cluster assignment (e.g., “cluster_1”, “group_A”, “bicluster_2”)

Output Files

All output files are saved to the specified out_dir:

  1. Matched control regions - all_controls.bed
    • BED file containing all matched control regions used as background for TFBS enrichment analysis
    • Regions are combined across clusters and de-duplicated to avoid redundant counting
chr start end
1 chr21 6497621 6498421
2 chr21 8197426 8198226
3 chr21 10482659 10483459
4 chr21 13979717 13980517
5 chr21 14216386 14217186
6 chr21 15729512 15730312
7 chr21 16301884 16302684
8 chr21 25735402 25736202
9 chr21 26059459 26060259
  1. Cluster-level TFBS enrichment table - TFBS_enrichment_cluster_<label>.tsv
  • Per-cluster transcription factor binding site enrichment results
  • Includes odds ratio, p-value, FDR, and hit counts for each TF motif
feature target_hit control_hit target_off control_off odds_ratio pvalue odds_ratio_se FDR
CREBBP 11 4 206 3086 35.686987900689 2.41692888678869e-11 0.537110966474507 7.46831026017705e-09
NCOA2 10 22 207 3068 7.04766662951468 6.09470440920052e-06 0.373524943105363 0.000812607561274904
STAT5A 12 34 205 3056 5.50587515453413 7.88939379878547e-06 0.332680015204062 0.000812607561274904
MCM5 3 0 214 3090 57.3957662256922 8.84174540651768e-05 1.1202565253937 0.00546419866122793
ZNF274 3 0 214 3090 57.3957662256922 8.84174540651768e-05 1.1202565253937 0.00546419866122793
PHB2 10 36 207 3054 4.36306397950694 0.000210357129487557 0.350814969016483 0.0108333921686092
  1. Full TFBS enrichment heatmap - TFBS_heatmap_all.pdf (if plot = TRUE)
    • Heatmap visualization of enriched TFBS across all clusters
    • Log2-transformed odds ratios with a symmetric color scale
    • Rows: TFBS
    • Columns: Cluster labels

  1. Top N TFBS heatmap - TFBS_heatmap_top<n>.pdf (if top_n provided and plot = TRUE)
    • Heatmap showing the top N TFBS with the highest coefficient of variation across clusters
    • Highlights TFBS exhibiting the greatest variability between clusters
    • Uses the same log2 odds ratio color scale as the full heatmap for consistency
    • Rows: TFBS
    • Columns: Cluster labels

  1. Log2 odds ratio matrix - odds_ratio_log2.csv (if plot = TRUE)
    • Matrix of log2-transformed odds ratios for all TFBS × clusters
    • Numerical data underlying the TFBS enrichment heatmap
    • Rows: TFBS
    • Columns: Cluster labels
  2. FDR matrix - FDR.csv (if plot = TRUE)
    • Matrix of FDR-adjusted p-values for all TFBS × clusters
    • Same row and column order as odds_ratio_log2.csv

Example Usage

library(multiEpiCore)

# Basic usage - complete pipeline with visualization
biclustering_TFBS_enrichment(
  row_cluster_file_path = "NMF_clusters.tsv",
  out_dir = "./TFBS_analysis/",
  ref_genome = "hg38"
)

# Custom region size for enhancer analysis
biclustering_TFBS_enrichment(
  row_cluster_file_path = "enhancer_clusters.tsv",
  out_dir = "./enhancer_TFBS/",
  ref_genome = "hg38",
  regions = 1000
)

# Mouse genome analysis
biclustering_TFBS_enrichment(
  row_cluster_file_path = "mouse_peaks_clustered.tsv",
  out_dir = "./mouse_TFBS/",
  ref_genome = "mm10",
  regions = 500
)

# Generate 3x more control regions for more robust statistics
biclustering_TFBS_enrichment(
  row_cluster_file_path = "ATAC_peaks_clustered.tsv",
  out_dir = "./ATAC_TFBS/",
  ref_genome = "hg38",
  control_rep = 3,
  regions = 800
)

# Enrichment analysis only (no heatmap)
biclustering_TFBS_enrichment(
  row_cluster_file_path = "clusters.tsv",
  out_dir = "./TFBS_tables/",
  ref_genome = "hg38",
  plot = FALSE
)


# Test Data
row_cluster_file_path <- "bicluster/row_table.tsv"
out_dir <- "bicluster/TFBS_enrichment"
annotation_ccre_hmm(row_cluster_file_path = row_cluster_file_path, out_dir = out_dir)
